Connectors of the 692/693 series have 3+PE (rated current 16 A) or 6+PE (rated current 10 A) contacts, they are available with solder, crimp or screw terminals and moulded cable. With IP67 protection, the series offers straight and angled cable plugs and receptacles as well as flange versions with dimensions of 38mm x 29mm. It has RD24 screw locking, the operating temperature range is between -40 °C and +100 °C and the connection cross-section is AWG 16 or max. AWG 18. The connectors are VDE, SEV and UL approved.
General Features| Part no. | 79 0234 50 04 |
|---|

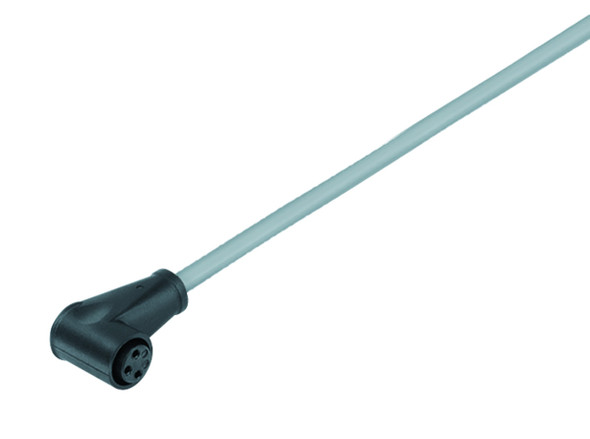

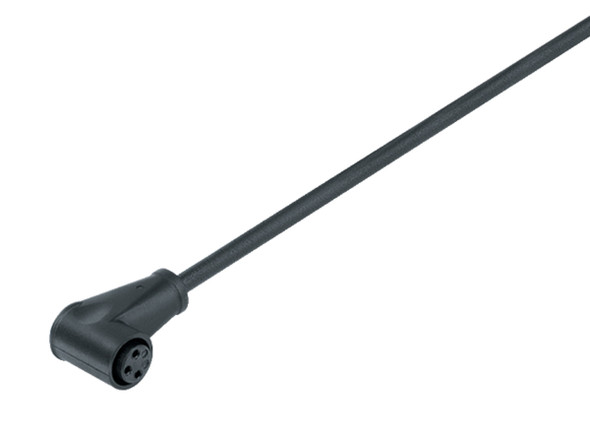

| Connector design | Female angled connector |
|---|
| Weight (g) | 663.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Material| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 3b10896d-1a31-4787-8231-75c7e2d28f7f |
|---|
Classifications| eCl@ss 11.1 | 27-06-03-11 |
|---|
| ETIM 7.0 | EC001855 |
|---|
