Connectors of the 692/693 series have 3+PE (rated current 16 A) or 6+PE (rated current 10 A) contacts, they are available with solder, crimp or screw terminals and moulded cable. With IP67 protection, the series offers straight and angled cable plugs and receptacles as well as flange versions with dimensions of 38mm x 29mm. It has RD24 screw locking, the operating temperature range is between -40 °C and +100 °C and the connection cross-section is AWG 16 or max. AWG 18. The connectors are VDE, SEV and UL approved.
General Features| Part no. | 79 0231 20 04 |
|---|

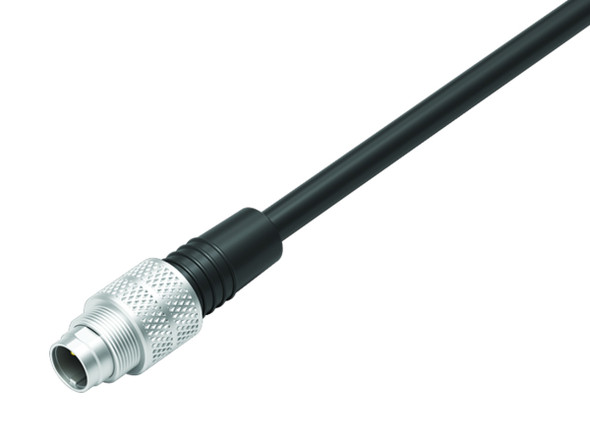

| Connector design | Male cable connector |
|---|
| Cable length | 2 m |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 1.50 mm² / AWG 16 |
|---|
| Temperature range from/to | -25 °C / 80 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 269.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 400 V |
|---|
| Rated impulse voltage | 6000 V |
|---|
| Rated current (40 °C) | 16.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PA12 |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 0c711d29-3268-41f1-a0d5-840a23afa32b |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 8.6 mm |
|---|
| Cross section | 4 x 1.50 mm² |
|---|
| Sheath material | PVC |
|---|
| Single-lead insulation | PVC |
|---|
| Single-lead structure | 28 x 0.25 mm |
|---|
| Cable color | black |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 7.5 x Ø |
|---|
| Bending radius, moving cable | ? 15 x Ø |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -20 °C / 80 °C |
|---|
| Other features |
| Halogen free | no |
|---|
