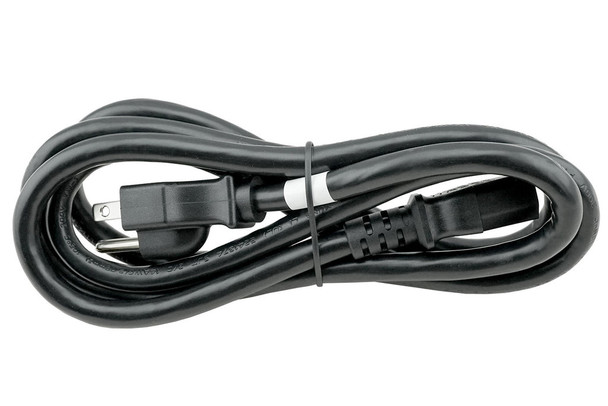

USA NEMA 6-20P to C13 power cord: USA NEMA 6-20 plug to IEC C13 with 14/3 SJT black wire, 6 feet with UL and CSA approvals. Rated up to 15A 250V. Note: The NEMA 6-20 standard has the black wire (live line) prong turned 90° and will not plug into standard 5-15 outlet. Please ensure that the NEMA 6-20 outlet is available for this cord.
| Attribute | Specification |
|---|---|

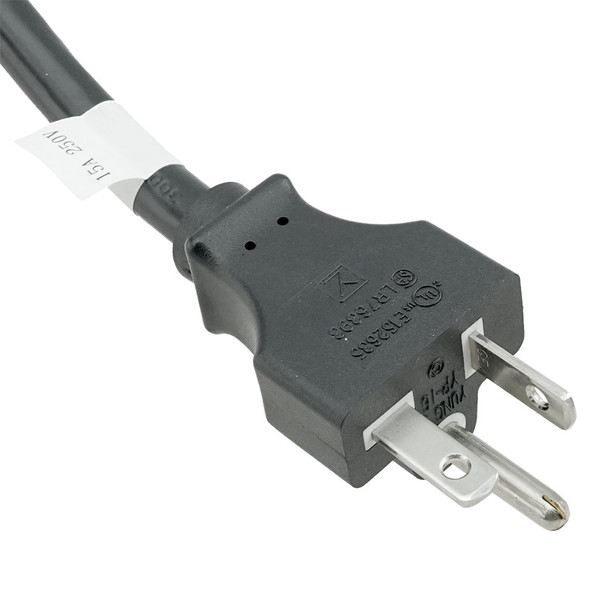

| Male Plug | USA NEMA 6-20P 3 prong 15A |
| Female Receptacle | IEC60320 C13 3 prong 15A |
| Wire Jacket Standard | SJT |
| Gauge | 14 AWG |
| Conductors | 3 wire |
| Copper Wire Stranding | 41 strands of 0.254mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 9.3mm |
| Conductor Color Code | Black, White, Green / NACC (North America Color Code) |
| Voltage | up to 250 Volts AC |
| Amperage | Up to 15 Amps |
| Color | Black |
| Number Per Carton | 50 |
| Carton Weight | 36 lbs (16.2kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | UL, cUL, CSA |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
