Description

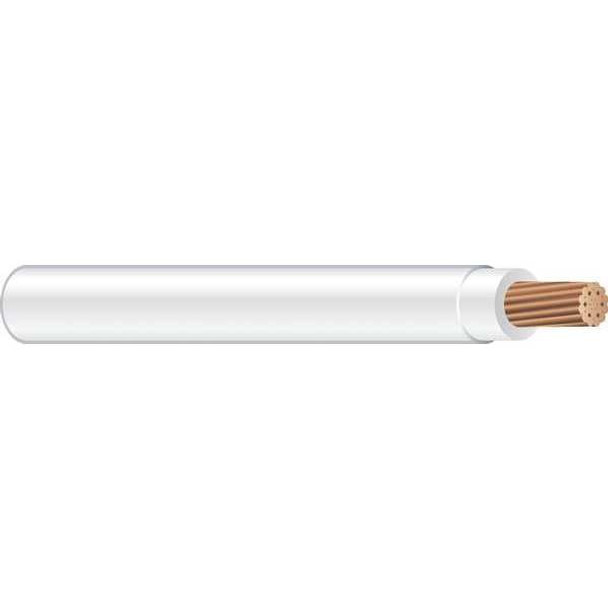

Building Wire, Trade Designation THHN, Wire Size 12 AWG, Wire Color White, Length 100 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.13 in, Packaging Spool, Jacket Color White, Voltage 600V AC, Stranding 19
Specifications
| Allowable Ampacity At 60C | 20 |
|---|---|
| Allowable Ampacity At 75C | 20 |
| Allowable Ampacity At 90C | 20 |
| Application | Wet Locations and Locations Exposed to Oil (Below 75ðC), Dry Locations (Below 90ðC) |
| Applications | ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75ð C or dry locations not to exceed 90ð C or locations not to exceed 75ð C when exposed to oil |
| Conductor Design | Stranded |
| Construction | ConstructionSouthwireî THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Insulation Material | PVC |
| Insulation Material Wire and Cable | PVC |
| Insulation Thickness Mils | 15mils |
| Item | Building Wire |
| Jacket Color | White |
| Jacket Material | Nylon |
| Jacket Material Wire and Cable | Nylon |
| Jacket Thickness Mils | 5mils |
| Length | 100 ft |
| Length Straight Wireway | 100 ft |
| Max Amps | 20 |
| No of Conductors | 1 |
| No of Strands | 19 |
| Nom Od Mils | 132mils |
| Nominal Outside Dia | 0.13 in |
| Number of Conductors | 1 |
| Packaging | Plastic Spool |
| Size Awg or Kcmil | 12 AWG |
| Spool Length | 100 ft. |
| Standards | UL |
| Stranded Solid | Stranded |
| Stranding | 19 |
| Temp Rating | 194 Degrees F |
| Trade Designation | THHN |
| Voltage | 600V AC |
| Wire Color | White |
| Wire Size | 12 AWG |
| Wire Size Wire and Cable | 12 AWG |
| Wire Type | THHN |
| Wire Type Wire and Cable | THHN |
| Wire and Cable Item | Building Wire |
