Description

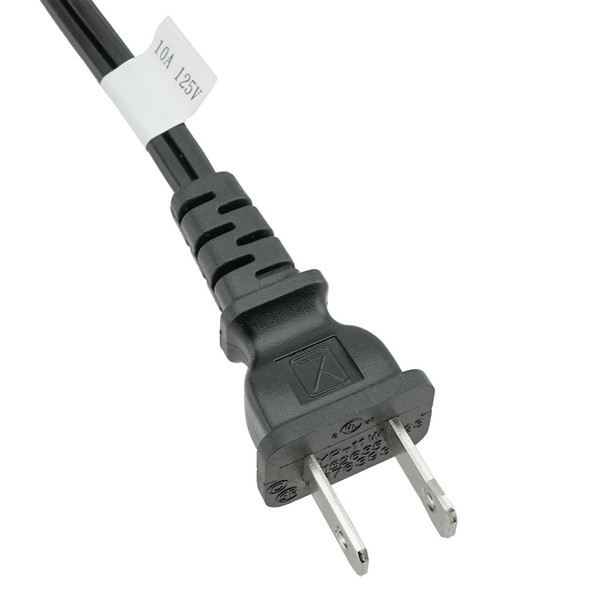

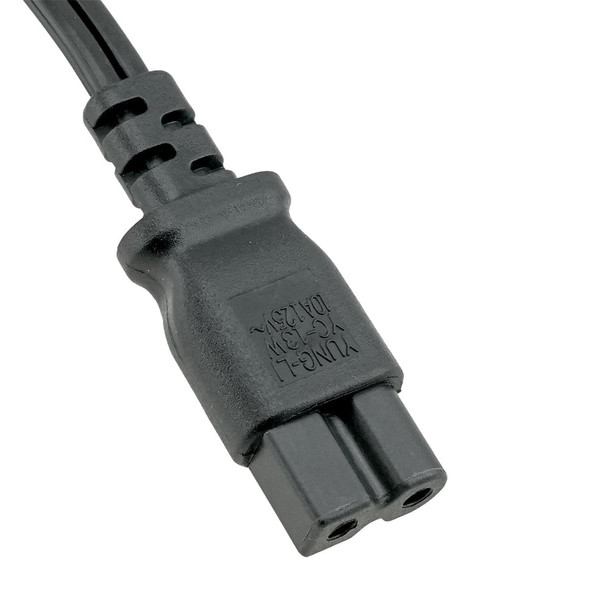

Polarized USA 2 prong plug to polarized C7 power cord: USA NEMA 1-15P polarized (one prong larger) 2 pin plug to polarized (one side squared off) C7 figure 8 receptacle with 18/2 SPT-2 black wire power cord. Rated up to 7A 125V, 6 feet and cUL approved.
| Attribute | Specification |
|---|---|
| Male Plug | USA NEMA 1-15P polarized (one prong larger) 2 prong 7A |
| Female Receptacle | IEC60320 C7 polarized (one side squared off) 2 prong 7A |
| Wire Jacket Standard | SPT-2 |
| Gauge | 18 AWG |
| Conductors | 2 wire |
| Copper Wire Stranding | 41 strands of 0.16mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 6.8mm by 3.4mm (Two dimensions because this is not round) |
| Conductor Color Code | Ribbed side and smooth side |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 7 Amps |
| Color | Black |
| Number Per Carton | 150 |
| Carton Weight | 33 lbs (14.6kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | UL/cUL Listed, CSA |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
