Description

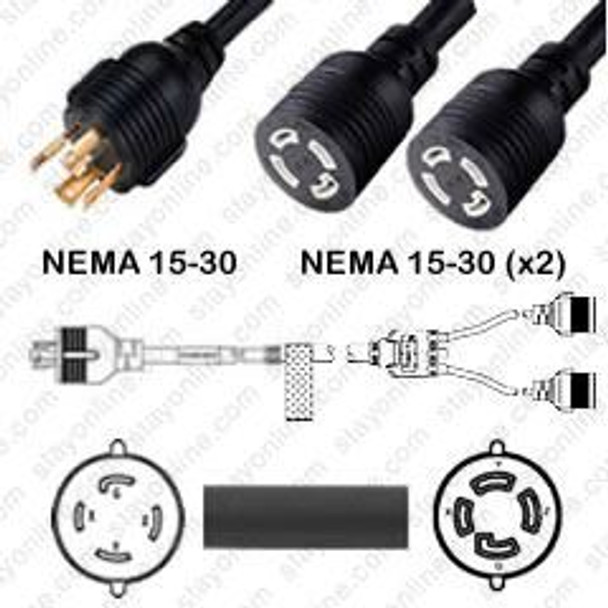

| Male Plug | NEMA L15-30 |
| Female Connector | NEMA L15-30 |
| Leg Count | 2 |
| Leg Length | 24 Inch |
| Voltage | 250 Volts |
| Amperage | 30 Amps |
| Cable Length | 2.7 Meter / 9 Feet |
| Tolerance | ± 50 mm / ± 2 inches for molded cords ± 100 mm / ± 4 inches for mechanical cords |
| Conductor Size | 8 Gauge AWG |
| Conductor Count | 4 wires |
| Conductor Color Code | Black, White, Red, Green | North American Color Code (NACC) |
| Outside Diameter | 23.7-24.1mm |
| Cable Jacket | North America SOOW |
| Jacket Material | NBR/PVC |
| Jacket Temperature Rating | 90° C |
| Color | Black |
| Testing | Each cord is tested for dielectric voltage-withstand (Hi-Pot), polarization and continuity. |
| Certification(s) | US & Canada - cULus |
| Packaging | Loose & Bundled |
| Weight | 5.985 lbs |
