Sold Out
Metz Connect

Metz Connect MMT471A115. PC board jack M12, D-coded, 4-pole, IP67, 90° angled, max. 2.5 mm wall thickness

No reviews yet Write a Review
$0.00

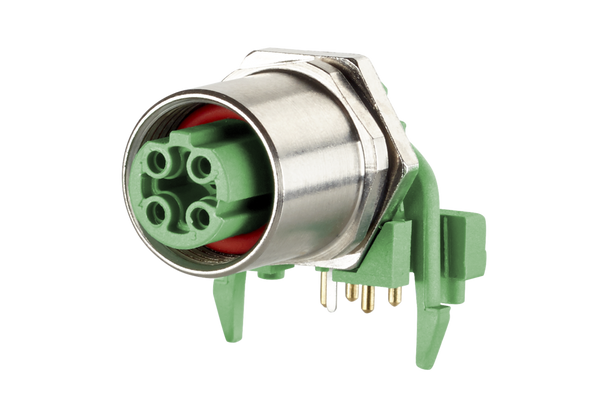

Metz Connect MMT471A115 PC board jack M12, D-coded, 4-pole, IP67,
90° angled, max. 2.5 mm wall thickness | American Cable Assemblies
Metz Connect MMT471A115. PC board jack M12, D-coded, 4-pole, IP67, 90° angled, max. 2.5 mm wall thickness
Metz Connect MMT471A115. PC board jack M12, D-coded, 4-pole, IP67, 90° angled, max. 2.5 mm wall thickness
SKU:
MTZMMT471A115
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Coding:
D-coded
Pole size:
4
RoHS:
compliant
EAN:
4250184187967

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • PC board jack M12
  • 4-pole, D-coded according to IEC 61076-02-101
  • 90° angled
  • THR solderable
  • Side entry
  • Contact carriers green
  • IP67 when plugged in
  • suitable for a wall thickness up to 2.5 mm
  • suitable for applications in the railway industry

Resources

PC board jack M12, D-coded, 4-pole, IP67, 90° angled, max. 2.5 mm wall thickness | MMT471A115View DataSheet

Specifications

General Data
Dimension [Height] (mm]: 22 mm
Dimension [Diameter] (inch): 0.0
Dimension [Height] (inch): 0.866 in.
ports: Single port
Coding: D-coded
Electrical characteristics
Rated voltage: 250 V
Insulation resistance: min. 100 MOhm
Degree of pollution [1]: 3
Mechanical data
Material - Housing: CuZnPb
Material - Contact: CuZnPb
Contact surface: Ni + Au
Material - Insulating body: PA UL94 V0
Color: metallike
Life - Number of mating cycles: >= 100
Tightening torque - Plug: 0,6 - 1 Nm
Tightening torque - Jack mounting: 3 Nm +/- 0,5 Nm
Protection category: IP67 when plugged in
Klimatische Eigenschaften
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 90 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 194 °F
