Sold Out
Metz Connect

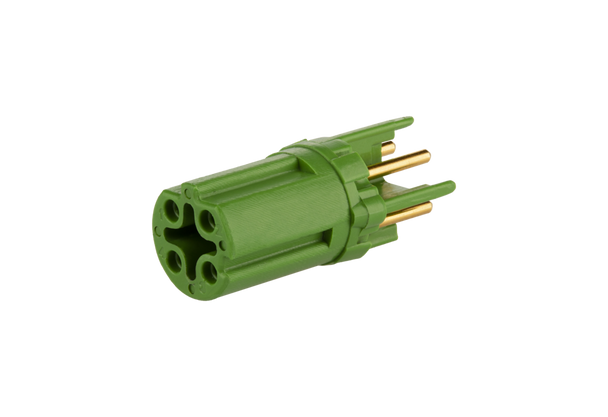

Metz Connect MMT060A115. PC board insert M12, D-coded, 4-pole, green

No reviews yet Write a Review
$0.00
Metz Connect MMT060A115 PC board insert M12, D-coded, 4-pole, green | American Cable Assemblies
Metz Connect MMT060A115. PC board insert M12, D-coded, 4-pole, green
Metz Connect MMT060A115. PC board insert M12, D-coded, 4-pole, green
SKU:
MTZMMT060A115
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Coding:
D-coded
Pole size:
4
RoHS:
compliant
EAN:
4251394616490

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • PC board insert M12
  • Cat.5
  • 4-pole, D-coded
  • suitable for 10/100 MBit
  • THR solderable
  • Top entry
  • Contact carriers green
  • suitable for applications in the railway industry according to data sheet

Resources

PC board insert M12, D-coded, 4-pole, green | MMT060A115View DataSheet

Specifications

General Data
Dimension [Diameter] (mm): Ø 9.2 mm
Dimension [Height] (mm]: 20.5 mm
Dimension [Diameter] (inch): 0.362 in.
Dimension [Height] (inch): 0.807 in.
ports: Single port
Coding: D-coded
Electrical characteristics
Rated voltage: 250 V
Current carrying capacity at 40 °C: 4 A
Insulation resistance: min. 100 MOhm
Overvoltage category [1]: II
Degree of pollution [1]: 2
Mechanical data
Material - Contact: CuZnPb
Contact surface: Ni + Au
Material - Insulating body: PA UL94 V0
Color: green
Life - Number of mating cycles: >= 100
Klimatische Eigenschaften
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 85 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 185 °F
