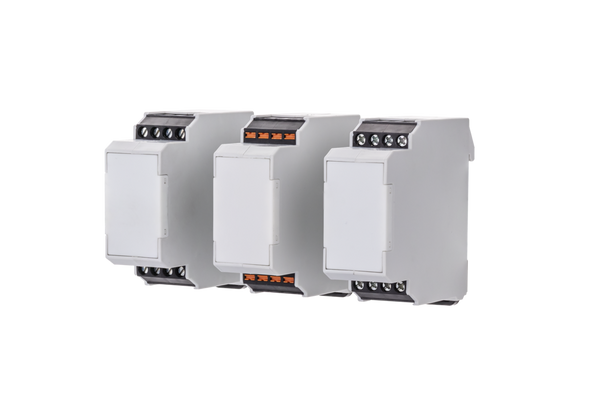

| Housing E08 | | View DataSheet |
|---|
| Dimension [Width] (mm): | 22.5 mm |
|---|---|
| Dimension [Height] (mm]: | 61.3 mm |
| Dimension [Depth] (mm): | 60 mm |
| Number of connection poles: | 2 x 4 connection poles |
| Mounting style: | Standard rail TH35 |
| Protection category - housing (acc. to IEC 60529): | IP40 |
| Protection category - terminal blocks (acc. to IEC 60529): | IP20 |
| housing color: | gray |
|---|---|
| Cover color: | white |
| Bolt color: | black |
| Material - Housing: | PA 6.6 UL 94 V-0 |
| Material - white cover: | PA 6.6 UL 94 V-0 |
| Material - bolt: | POM UL 94 HB |
| Flammability class acc. to UL 94 - housing: | V0 |
| Flammability class acc. to UL 94 - white cover: | V0 |
| Flammability class acc. to UL 94 - bolt: | HB |
| Temperature °C (max.) - housing [RTI Elec acc. to UL 746B]: | 130 °C |
|---|---|
| Temperature °C (max.) - cover (PA) [RTI Elec acc. to UL 746B]: | 130 °C |
| Temperature °C (max.) - bolt [RTI Elec acc. to UL 746B]: | 110 °C |
| Temperature °C (1.8 MPa) - housing [acc. to ISO 75-1, -2]: | 85 °C |
| Temperature °C (0.45 MPa) - cover (PA) [acc. to ISO 75-1, -2]: | 185 °C |
| Temperature °C (1.8 MPa) - cover (PA) [acc. to ISO 75-1, -2]: | 85 °C |
| Temperature °C (0.45 MPa) - cover (PA) [acc. to ISO 75-1, -2]: | 185 °C |
| Temperature °C (1.8 MPa) - bolt [acc. to ISO 75-1, -2]: | 104 °C |
| Temperature °C (0.45 MPa) - bolt [acc. to ISO 75-1, -2]: | 160 °C |
