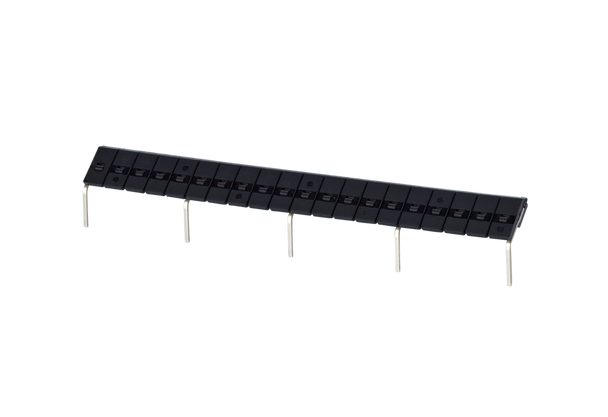

The connecting bridge easily connects the terminal blocks of the 14-pole Industry sockets 110175 and 110178, without having to wire them individually. The connecting bridge has 5 poles and is available with grid dimension 28.1 mm. The end mounts completely insulate the comb-type back to provide finger protection.
- Mechanically polished surface
- flame retardant, self-extinguishing to UL 94V-2
Resources
Specifications
General Data | Rated voltage | 250 V |
| Rated current | 10 A |
| Number of poles | 5 |
| Grid dimension | 28.1 mm |
| Upper temperature limit | 100 °C |
| Lower temperature limit | -40 °C |
| Material / jumper | CuZN 37 F54 |
| Ingress protection | IP20 |
