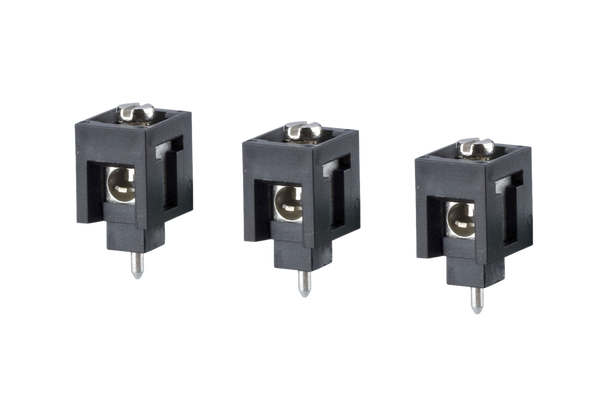

Description
- screw type terminal block, solderable
- direction of connection 90°
- wire protector
- color black
- with molded housing, single solder pin, screw brought down by hand (transport safety)
Resources
| Type 360271 | 360271 | View DataSheet |
|---|
| Type 360271 | 360271 | View DataSheet |
|---|
| Tightening torque SEV: | 0.5 Nm |
|---|---|
| Tightening torque UL: | 4.4 lb-in |
| Solder pin length: | 2.9 mm |
| min. number of poles: | 1 |
| max. number of poles: | 1 |
| Insulating material class: | CTI 600 |
| Connection capacity (single-wire): | 0,33 - 2,0 mm² |
|---|---|
| Connection capacity (single-wire): | AWG 22 - 14 |
| Connection capacity (multi-wire): | 0,33 - 1,5 mm² |
| Connection capacity (multi-wire): | AWG 22 - 14 |
| terminal body material: | CuZnPb |
|---|---|
| terminal body surface: | Ni + Sn |
| screw surface: | Zn Cr(VI)-frei/free |
| wire protector material: | CuNi18 |
| terminal body thread: | M3 |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
