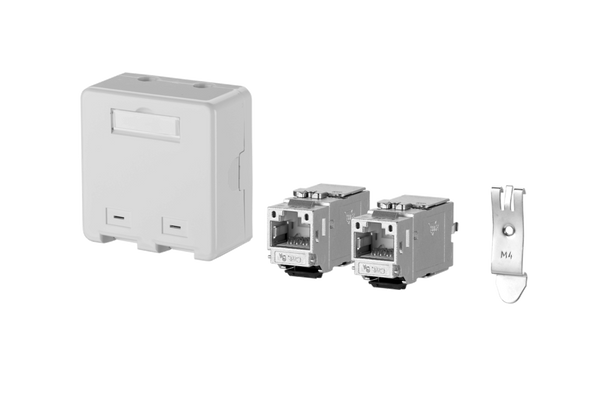

Metz Connect 130B21D2APL-E. Extension box 2 port C6Amodul Keystone

No reviews yet Write a Review
$0.00
Metz Connect 130B21D2APL-E Extension box 2 port C6Amodul Keystone | American Cable Assemblies
Metz Connect 130B21D2APL-E. Extension box 2 port C6Amodul Keystone
Metz Connect 130B21D2APL-E. Extension box 2 port C6Amodul Keystone
Metz Connect 130B21D2APL-E. Extension box 2 port C6Amodul Keystone
Metz Connect 130B21D2APL-E. Extension box 2 port C6Amodul Keystone
SKU:
MTZ130B21D2APL-E
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
RoHS:
compliant
EAN:
4251394626536

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • for the connection of the termination point meter position in the APZ area of the termination point line network (DMARC), equipped with C6Amodul K 180°
  • suitable for mounting on support rail in counter panel of general power supply below cover in room for additional applications to VDE-AR-N 4100
  • failsafe contact with integrated dust protector slide, not sealable
  • for connection of an MUC communication module
  • certified to GHMT Cat.6A re-embedded PVP
  • component testing for Cat.6A to ISO/IEC 11801-1, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, certified to GHMT
  • compliance with class EA up to 500 MHz to ISO/IEC 11801-1, DIN EN 50173-1
  • tested: components up to 600 MHz, link up to 800 MHz
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
  • migration to 25G-systems without special tools
  • plug direction of module inclined at 90° to top hat rail
  • strain relief snapped on to stuffer cap
  • with label window for enclosed identification labels
  • cover parts in pure white RAL 9010, glossy surface
  • variants: APZ 1 port, APZ 2 port

Resources

Extension box 2 port C6Amodul Keystone | 130B21D2APL-EView DataSheet
