The LON module with 4 digital inputs and 2 relay outputs was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used either as contact or voltage inputs. SNVT network variables switch and scan the inputs and outputs. The outputs have a manual control activated only in configured mode. In addition, an adjustable wipe function is integrated. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with spring clamp terminal blocks (push-in)
Resources

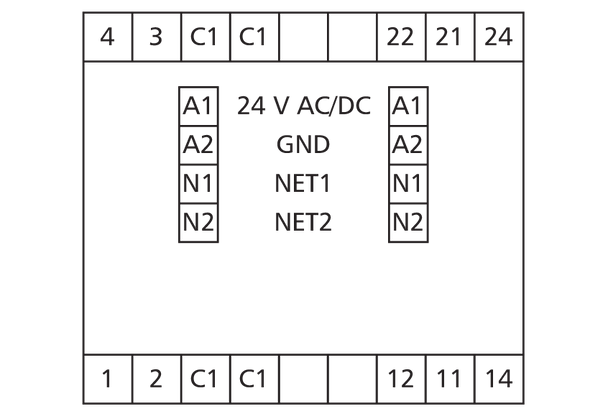

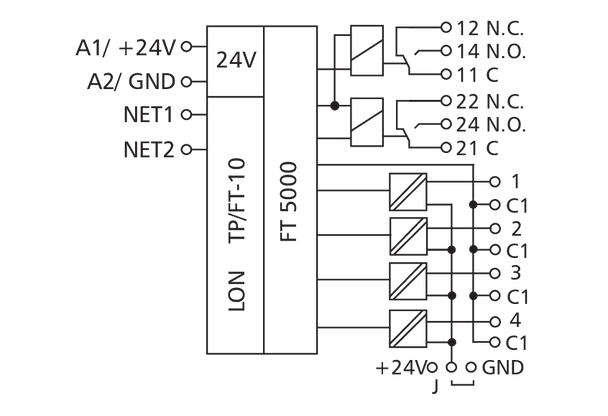

Specifications
General Data | Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 220 mA (AC) / 90 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Inputs | 4 x digital |
| Input / voltage | 30 V AC/DC |
| Input / high signal | more than 7 V AC/DC |
| Outputs | 2 x changeover contacts (DPDT) |
| Output / switching voltage | 250 V AC |
| Output / current | 16 A / output |
| Output / total current | 25 A across all outputs |
| Operation and bus display | Green and yellow LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 126 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
