The MB-DIO2/1-IP 24 V module in IP65 housing with 2 digital inputs, as well as 1 relay output, is suitable for the inclusion of decentralized signal contacts and the control of decentralized switching tasks. As signal contacts, e.g. window contacts or the positions of ventilation flaps, etc. can be detected and controlled for switching tasks, e.g. motorized actuators or light bands, etc. Actuators with AMP connectors (AMP brand from TE Connectivity) can be connected directly to the MB-DIO2/1-IP 24 V. Depending on the operating mode, the module can be switched or requested with Modbus standard registers or with BACnet objects.
- for the control of an actuator, e.g. fire damper
- Connection options for actuators with AMP plug-in connector or open connection lines with pluggable push-in technology
- Supply voltage is also switching voltage
- Relay output suitable for inrush current 65 A < 20 ms (NO), continuous current 6A
- generous space for installation - no additional distribution box required
Resources

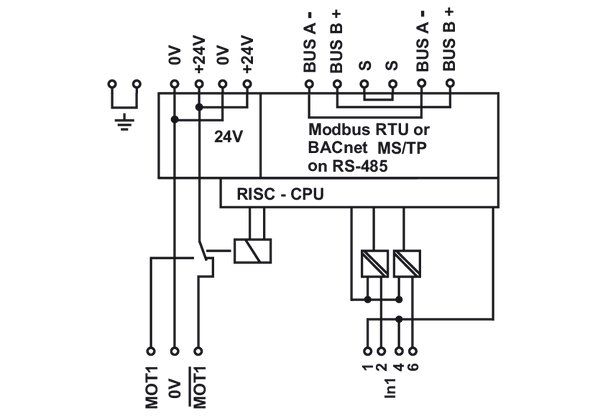

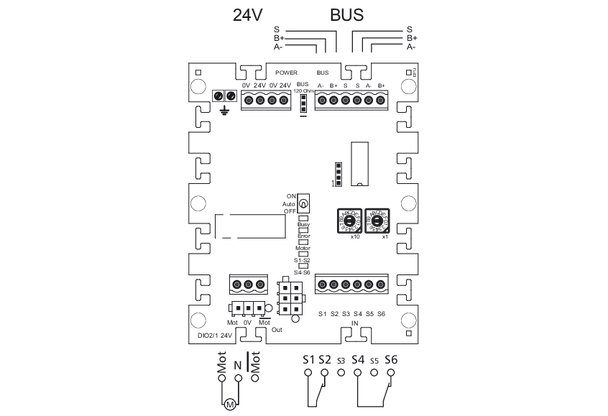

Specifications
General Data | Protocol | Modbus RTU / BACnet MS/TP |
| Adressing range Modbus | 00 to EF |
| Adressing range BACnet | 00 to EF |
| Transmission rate | 1200 to 115200 bit/s |
| Factory Setting | 19200 Bit/s Even |
| Bus interface | RS485 (two-wire bus) |
| Operating voltage | 24 V AC/DC +/- 10% (SELV) |
| Current consumption | 80 mA (AC) / 25 mA (DC) |
| Relative duty cycle | 1 |
| Digital inputs | 2 |
| Input | Contact |
| Output contacts | 1 changeover contact (DPST) |
| Continous current max. | 6 A per relay (65 A for 20 ms NO) max. current 10 A |
| Dimensions (W x H x D) | 125 x 75 x 175 mm |
| Weight | 460 g |
| Mounting position | any |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Type of protection (IEC 60529) | IP66 |
| Display | LED green, red, yellow |
