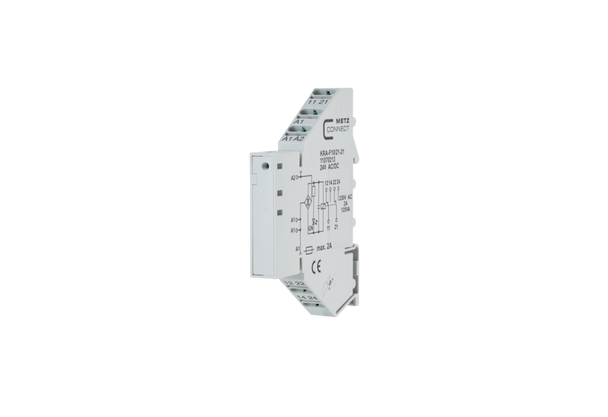

Coupling devices are used to electrical isolation between logic and load.
- Connection with spring-clamp terminal
- Additional terminals for jumper
- Test contacts for each terminal
- safe separation
Resources
Specifications
General Data | Operating voltage | 24 V AC/DC |
| Current consumption | 16 mA |

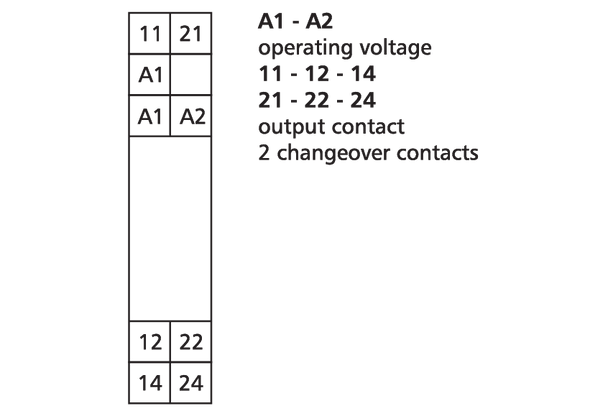

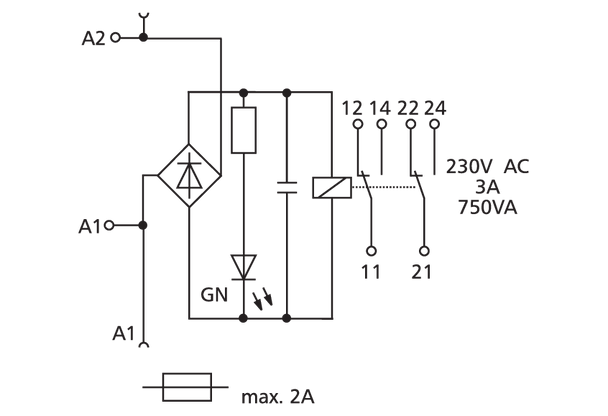

| Outputs / contact | 2 changeover contacts (DPDT) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V AC |
| Output / continuous current | 3 A |
| Output / switching frequency | 300 cycles/h |
| Response time | 10 ms |
| Release time | 5 ms |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | Green LED |
| Dimensions (W x H x D) | 11.2 x 87.5 x 60 mm |
| Weight | 43 g |
| Operating temperature range | -20 °C to 55 °C |
| Storage temperature range | -25 °C to 70 °C |
| Ingress protection of the housing | IP40 |
