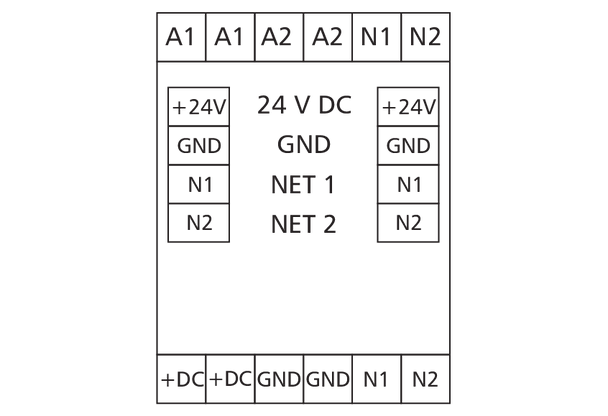

The HUB DC is used as ballast to operate I/O modules of the C|Logline LON, Modbus and BACnet range to rectify and smooth 24 V AC (alternating voltage). It supplies at the output a smoothed direct voltage of about 33 V DC (with 24 V AC at the input). To convert the supply voltage of C|Logline LON, Modbus and BACnet modules from a 24 V AC operation to DC operation (24 to 36 V DC) reduces the thermal load in the I/O modules and extends the service life of the included components. The device is designed as half-wave rectifier with common earth point (input A2 = output 0 V) to be directly used in 24 VAC systems.
Resources
Specifications
General Data | Area of application | I/O modules |
| Input voltage | 20 to 28 V AC |
| Output voltage | less than 39 V DC |
| Smoothing | 4400 µF / 63 V |
| Display | green LED |
| Dimensions W x H x D | 35 x 69.3 x 60 mm (1.4 x 2.7 x 2.3 in.) |
| Weight | 90 g |
| Operating temperature range | 23 °F to 131 °F (-5 °C to +55 °C) |
| Storage temperature range | -4 °F to +158 °F (-20 °C to +70 °C) |
| Type of protection | |
| housing / terminal blocks | IP40 / IP20 |
