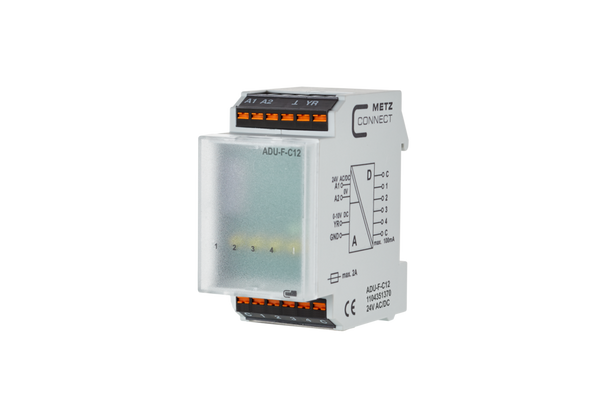

The analog/digital converter ADU-C12 processes input voltages from 0 to 7.5 V DC in 0.5 V steps. The digital outputs switch according to the applied input voltage. The outputs are updated every 1.5 seconds, and the switching state is signalized by means of an LED.
- Connection with spring clamp terminal blocks (push-in)
- Switching states are indicated by means of LEDs
Resources
Specifications
General Data | Operating voltage | 24 V AC/DC |
| Current consumption 24 V AC | 50.2 mA |
| Current consumption 24 V DC | 42 mA |
| Input / voltage | 0 to 10 V |
| Input / scanning | 0.5 V steps |
| Output / voltage | up to 40 V AC/DC |
| Output / power consumption | max. 100 mA / channel |
| Display | Green and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 30 g |
| Operating temperature range | -10 °C to 50 °C |
| Storage temperature range | -25 °C to 70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
