Description

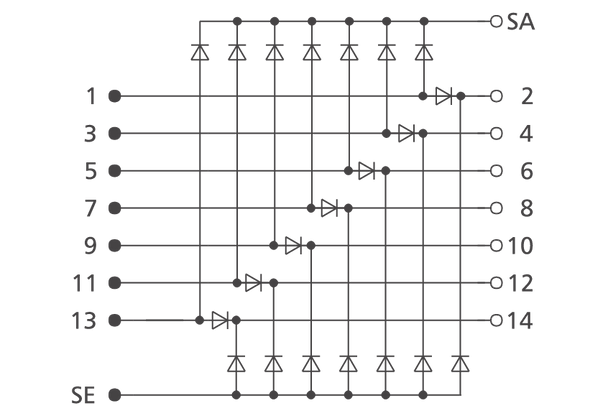

The lamp test module combines several functions in one module (individual and collective messages and lamp test). The incoming fault messages are applied to the inputs (1, 3, 5, 7, 9, 11, 13). The signal lamps are connected to the outputs (2, 4, 6, 8, 10, 12, 14). When there is a message at an input, the belonging signal lamp lights up. At the same time, a signal is transmitted to the SA output. When a signal is applied to the SE input, all signal lamps light up without a signal being transmitted to the SA output. Please do not use it for 230 V LEDs! (capacitor power supply units)
- for 7 lamps

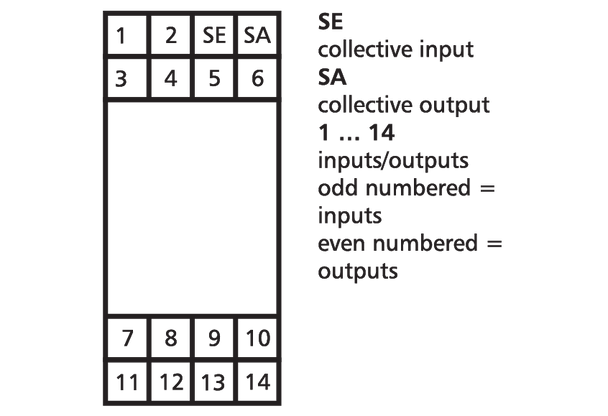

- Output for collective message
- Input for lamp test
- Connection with screw-type terminals
