Metz Connect

Metz Connect 11027070. ASD-F-C18

No reviews yet Write a Review
$0.00
Metz Connect 11027070 ASD-F-C18 | American Cable Assemblies
Metz Connect 11027070. ASD-F-C18
Metz Connect 11027070. ASD-F-C18
Metz Connect 11027070. ASD-F-C18
Metz Connect 11027070. ASD-F-C18
SKU:
MTZ11027070
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Connection type:
Spring clamp terminal blocks
RoHS:
compliant
EAN:
4251394620466

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

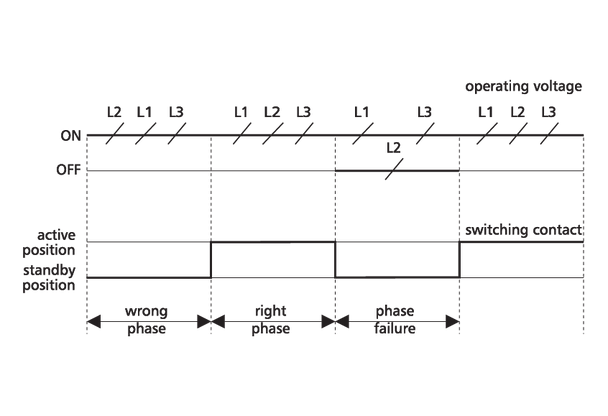

Monitoring relay for monitoring asymmetry, phase failure, phase sequence errors, overvoltage and undervoltage of a three-phase connection. With external fault acknowledgement.

  • Connection with spring clamp terminal blocks (push-in)
  • Adjustable response delay
  • Adjustable asymmetry
  • Selectable fault memory
  • 7-segment display

Resources

ASD-F-C18 | 11027070View DataSheet

Specifications

General Data
Operating voltage 230 V AC, 50 Hz
Current consumption less than 15 mA
Response delay 0.1 s to 9.9 s, adjustable
Asymmetry 5 % to 20 %, adjustable
Switching hysteresis 20 %
Monitoring voltage 3 x 230/400 V AC, 50 Hz
Output contact 2 x changeover contacts (DPDT)
Max. switching voltage max. 250 V AC
Max. continuous current 8 A
Mechanical endurance 3 x 107 switching cycles
Electrical endurance 1 x 105 switching cycles
Dimensions (W x H x D) 50 x 69.3 x 60 mm
Weight 200 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal block IP40 / IP20
