Description

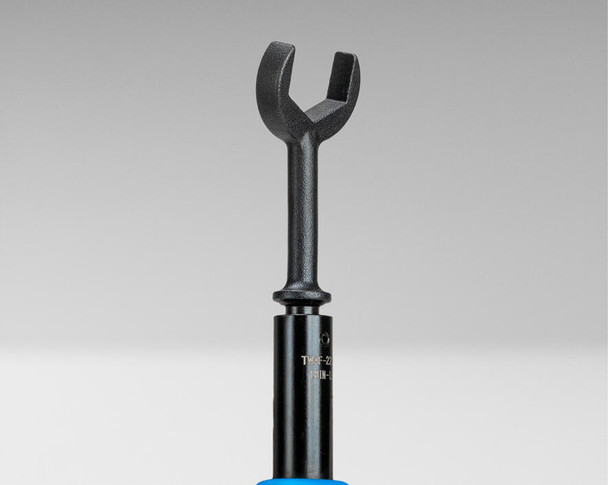

Designed for tightening 4.3-10 DIN connectors to 88 in-lb (10 N-m), this full-size open head torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:
- Provides a tighter fit when used on 22 mm connectors, nuts, and bolts
- Ergonomically designed with an angled head and cushion grip for maximum leverage and comfort
- Calibrated to 88 in-lb (10 N-m) to consistently meet most manufacturers' recommended torque requirements for their connectors
- Audible click lets you know when the connector is fully torqued to 88 in-lb
- Made of high carbon steel with a black oxide finish for maximum durability
- Lifetime Warranty
Specifications +
| Head Type | Full-Size Open Head |
|---|---|
| Torque | 88 in-lb (10 N-m) |
| Connector Type | 4.3-10 DIN |
| Size | 22 mm Connectors, Nuts, and Bolts |
| Head Angle | 15 degrees |
| Material | High Carbon Alloy Steel |
| Finish | Black Oxide |
| Handle Type | Ergonomic Cushion Grip |
| Handle Color | Blue |
| Dimensions | 8.5 in x 1.3 in x 1.11 in (21.59 cm x 3.3 cm x 2.82 cm) |
| Weight | 0.43 lb (197.036 g) |
| UPC # | 811490017924 |
| Data Sheet | Download Data Sheet | TWAF-2288 |
