Description

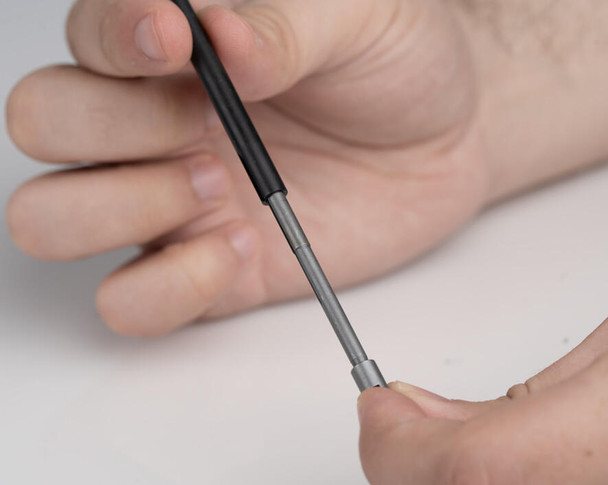

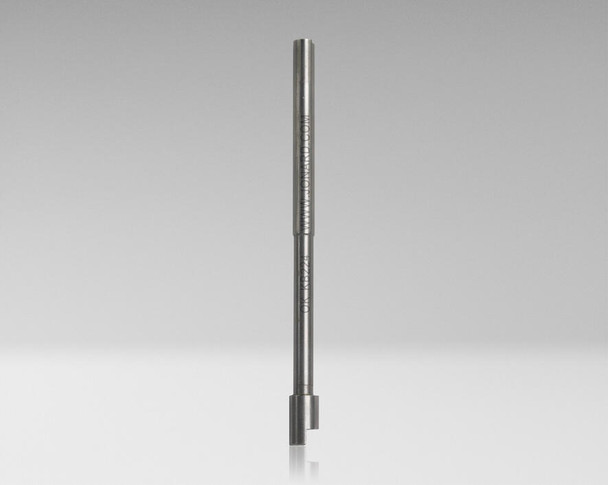

Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2224, P2224INS, S224
Specifications +
| Sleeve Part No. | P2224, P2224INS, S224 (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 22-24 AWG (0.65 mm - 0.50 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Terminal Hole Depth | 0.807" (20.05 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.111" (2.82 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 3(7.9375cm) |
| Weight | 0.02 lb (8.172 g) |
| UPC # | 811490010550 |
| Data Sheet | Download Data Sheet | KB224 |
