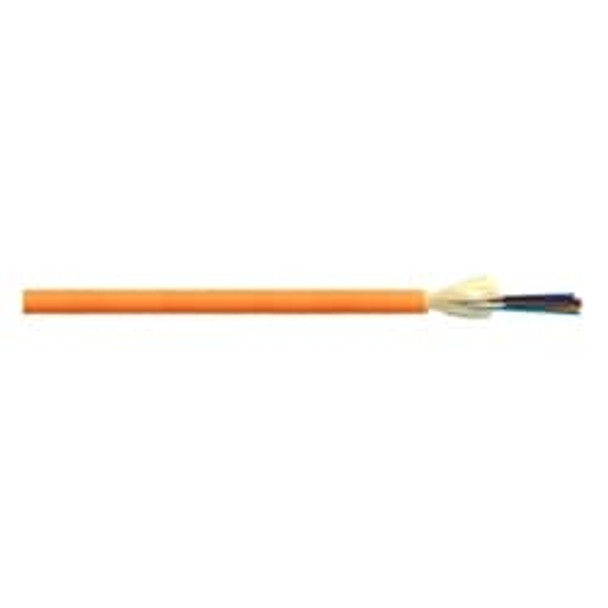

These Superior Essex premises distribution optical fiber cables are constructed using a single unit - single jacket RoHS-compliant design with fiber counts from 6 through 24. The design consists of flexible 900 Um tight buffered industry standard 250 U m fibers (900/250/125 Um) and is suitable for use with standard connectors, like the SC, ST, and FC, and small-form-factor connectors like the LC. Dielectric aramid yarns are applied for strength while maintaining flexibility. The 18 and 24-fiber cable designs have a flexible glass reinforced central strength element for added durability and performance. A durable, flame resistant outer jacket is applied over the cable core using appropriate OFNR or OFNP rated materials.
Specifications:
| Armored: |
NO |
| Cable Type: |
TIGHT BUFFERED |
| Fiber Count: |
12 |
| Fiber Type: |
OS2 SINGLE-MODE |
| Fire Rating: |
RISER |
| UNSPSC Code: |
26121607 |
Product Spec Sheet (PDF)
