Description

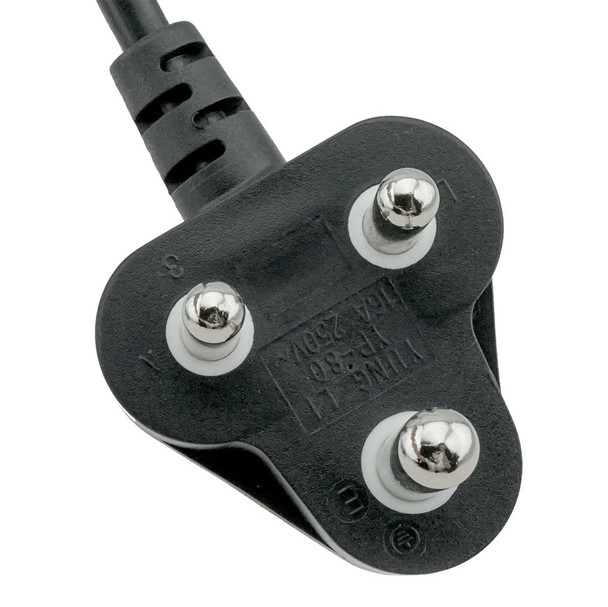

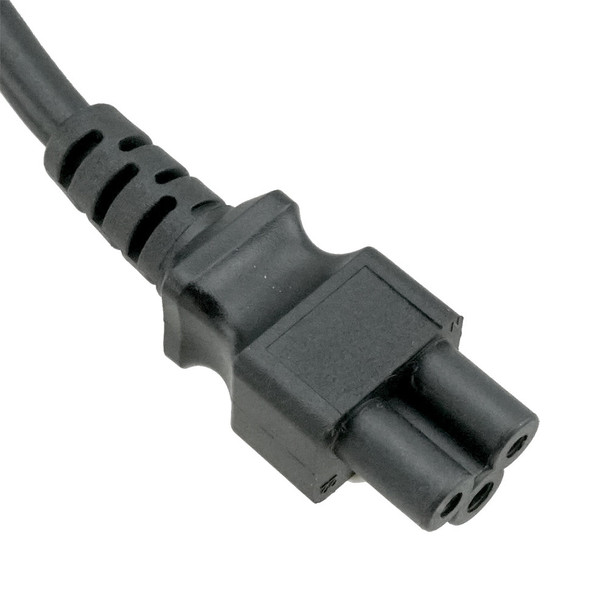

India IS1293 to C5 laptop power cord: India IS-1293 (aka IA16A3 and BS546) 3 pin plug to IEC C5 with Y Y (H05VV-F) 0.75mm² black wire, 6 feet with BIS approval and certified to conform to the IS 694 India standard for PVC insulated cables for working voltages up to 1,100 volts.
| Attribute | Specification |
|---|---|
| Male Plug | India IS1293 (aka IA16A3 or BS546) 3 prong 2.5A |
| Female Receptacle | IEC60320 C5 3 prong 2.5A |
| Wire Jacket Standard | Y Y (H05VV-F) |
| Gauge | 0.75mm² |
| Conductors | 3 wire |
| Copper Wire Stranding | 24 strands of 0.20mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 70°C |
| Wire Outer Diameter | 6.7mm |
| Conductor Color Code | Black, Red, Green/Yellow (India standard) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 2.5 Amps |
| Color | Black |
| Number Per Carton | 60 |
| Carton Weight | 32 lbs (14.3kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | India BIS |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
