Description
Features

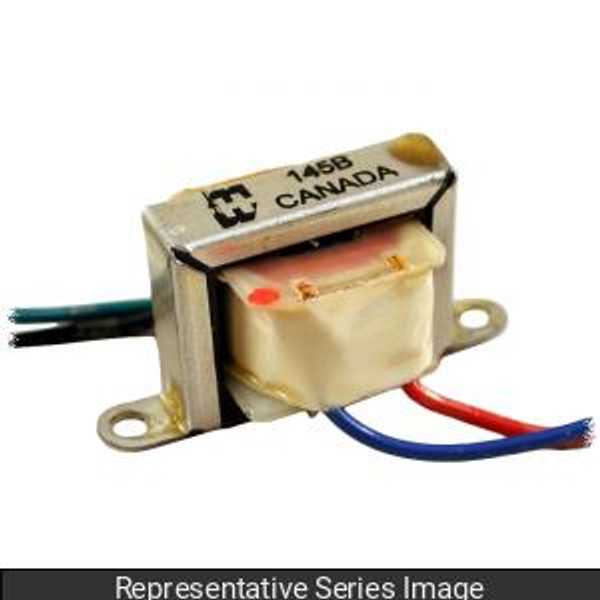

- Small, economical, open, two hole horizontal bracket mount.
- Insulated, color coded flexible leads, 4" long minimum (143, 144 & 145 Series) or 3" long minimum (146 Series).
- For a similar, P.C. board mount version, refer to the 148 and 149 series.
- Frequency response 150 Hz. to 15 Khz. (+/- 1 db, reference 1000 Hz.)
- When operating at impedances below nominal, power capability and the frequency spectrum are proportionately lower, conversely, at higher impedances power capability and frequency spectrum will be proportionately higher.
- Net weight: 0.5 oz. (143, 144, 146 Series) & 1.4 oz. (145 Series).
Specifications
| Application | Driver |
|---|---|
| Primary Nominal Impedance (ohms) | 2000 |
| Secondary Nomical Impedance (ohms) | 200 ct |
| Primary D.C. Current (ma) | 12 |
| Primary D.C. Resistance (ohms) +/- 15% | 140 |
| Secondary D.C. Resistance (ohms) +/- 15% | 9 |
| Output (mW) | 135 |
| Drawing Sheet | Download Drawing Sheet |
