Description

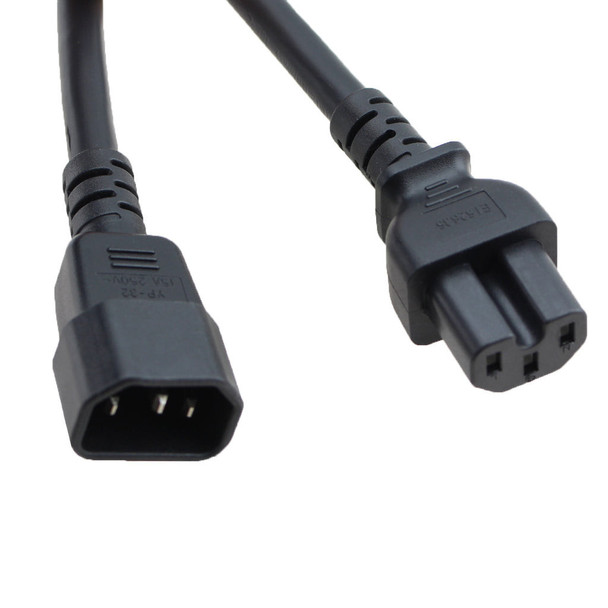

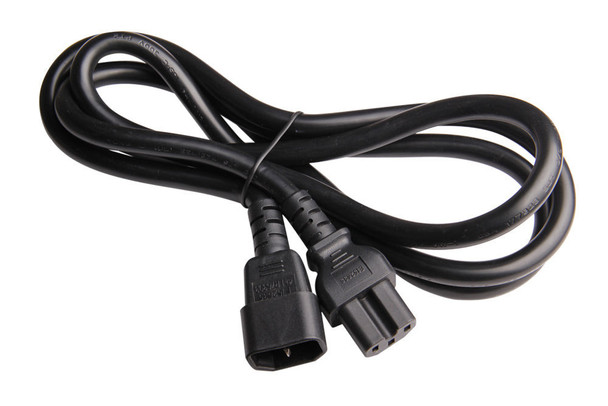

GLOBAL IEC C14 to C15 power cord: IEC 60320-C14 to C15 with 17/3 SJT black wire. Rated up to 10A 250V. Available in various colors and lengths.
Approvals:
US & Canada - cULus
Europe - ENEC
Europe - VDE
Japan - PSE(JET)
| Attribute | Specification |
|---|---|

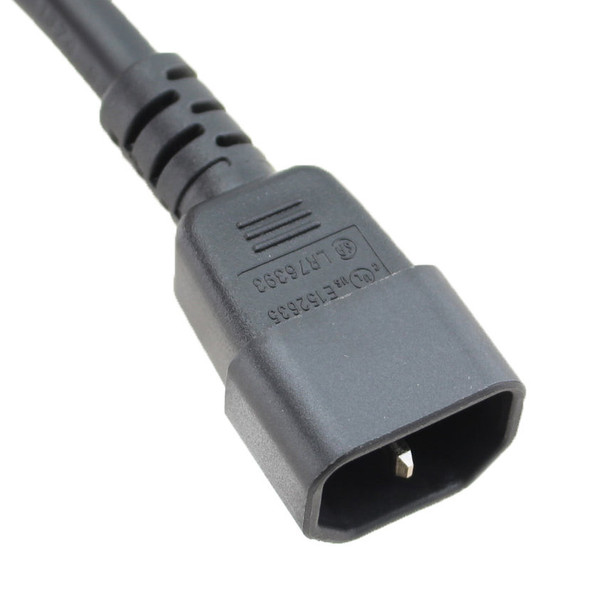

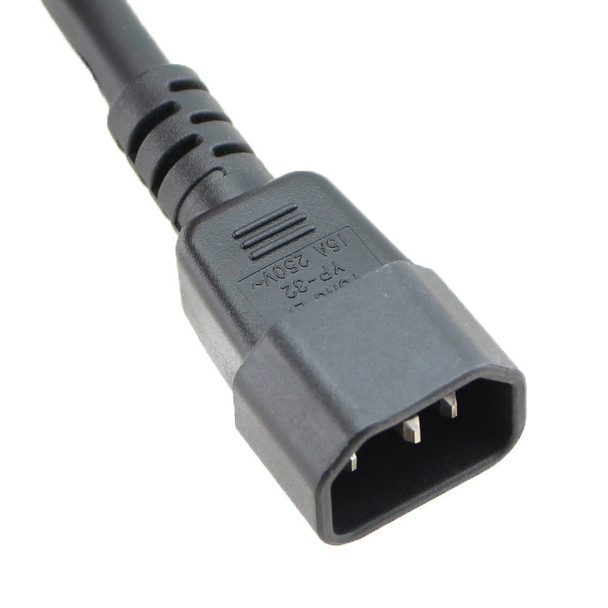

| Male Plug | IEC60320 C14 3 prong 10A |

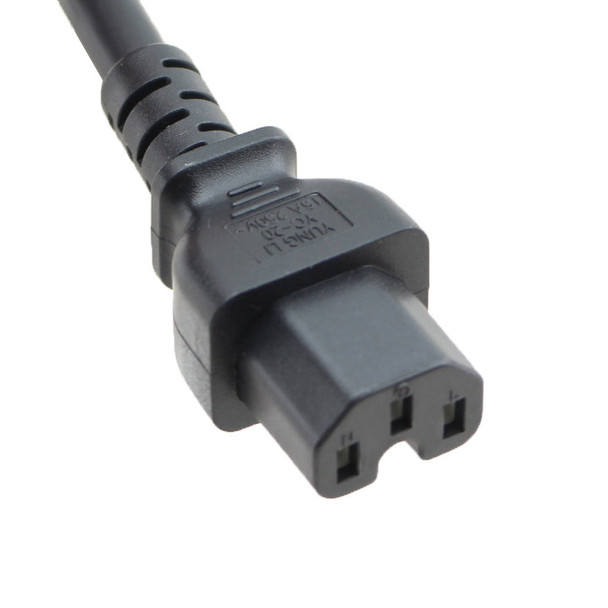

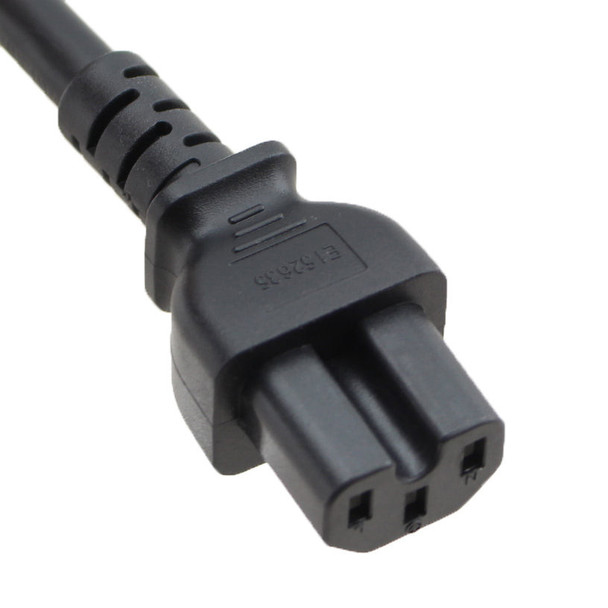

| Female Receptacle | IEC60320 C15 3 prong 10A |
| Wire Jacket Standard | SJT/H05VV/HVCTF |
| Gauge | 17 AWG |
| Conductors | 3 wire |
| Copper Wire Stranding | 41 strands of 0.254mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 9.3mm |
| Conductor Color Code | Black, White and Green / NACC (North American color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 15 Amps |
| Color | Assorted |
| Number Per Carton | Varies |
| Carton Weight | |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
