Description

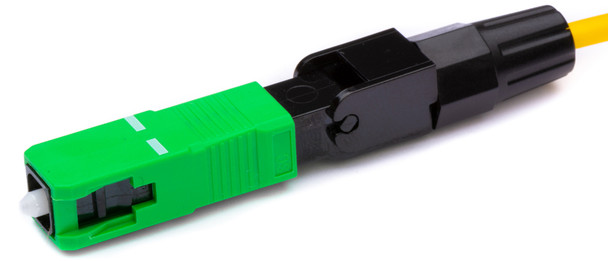

Fast, reliable fiber terminations start with the Camplex CA-2001 quick assembly connector. This CA-2001 is a pre-polished SC/APC Green fiber optic connector designed for single mode fiber. Its index matching gel ensures proper alignment of your fiber optic signals. Designed for 9/125 single mode fiber optic cable. Strain relief boot included.
-
Features:
- Connection: Single Mode SC- APC
- Quick termination
- With strain relief
- Pre-polished connector
- For 900um, 2mm, 3mm and drop cables
- RoHS compliant
-
Specifications:
- Insertion Loss: 0.30dB
- Return Loss: >55dB (UPC)
- Durability: >1,000 Matings
- Fiber Compatibility: Singlemode 9/125
- Boot Size: 0.9mm, 2.0mm, 3.0mm
- Connector Type: SC simplex
- Operational Temperature: -40°F - 176°F (-40°C - 80°C)
-
Item Includes:

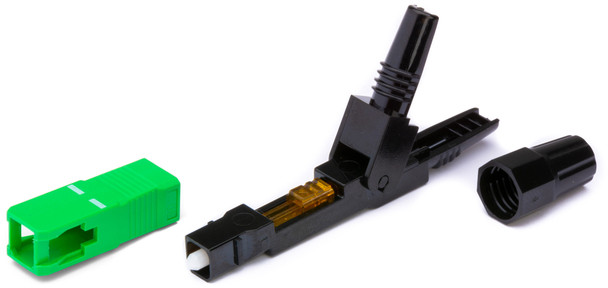

- Connector Shell & Connector Body
Resources
| Download the Instruction Sheet for Quick Assembly Connectors |  Download |
|---|
