Description

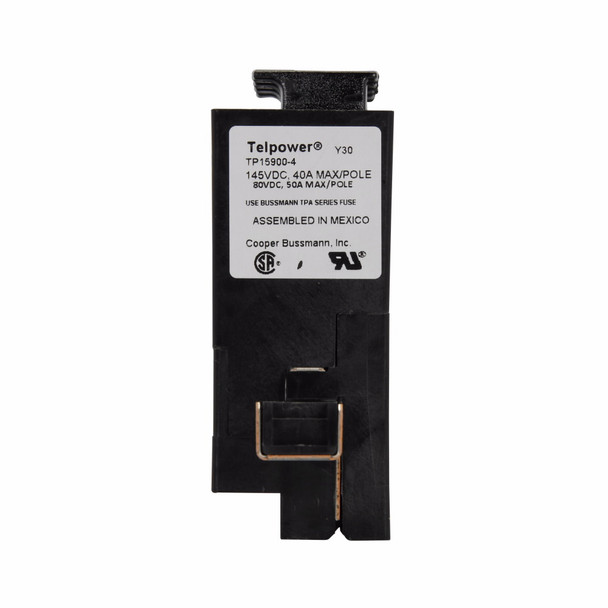

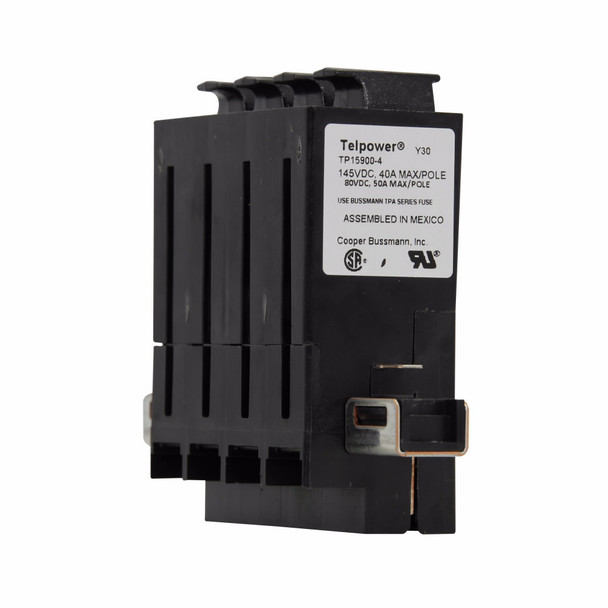

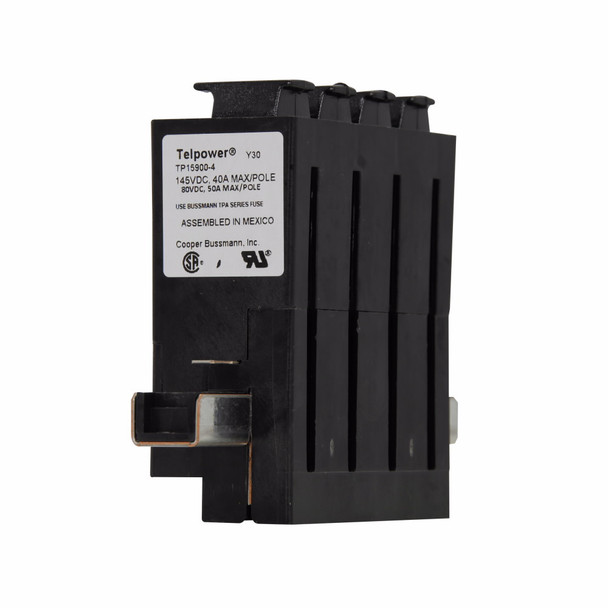

Bussmann TP15900-4 Disconnect Switch
Bussmann Telpower Disconnect Switch, Modular Design Rear Access Fused, Series: 1500, 145/80 VDC, 40/50 A, 4 Pole, 140 deg C Operating, 4.78 in Width, 1.587 in D
Additional Description: BUSS-TP15900-4 FUSED DISC 4-POLE
Catalog Description: Eaton Bussmann series 1500 fuse disconnect switch, Modular design, 145 Vdc, 80 Vdc, 40A at 145 Vdc, 50 A at 80 Vdc, Fusible, rear access, Four-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 40/50 |
| Amperage Rating | 40/50 A |
| Depth | 1.587 |
| Depth | 1.587 in |
| Dimensions | 4.78 in W x 1.587 in D |
| Number of Poles | 4 |
| Operating Temperature | 140 |
| Operating Temperature | 140 deg C |
| Series | 1500 |
| Temperature Rating (Degrees F) | 140 |
| Terminal Type | 0.35 in Quick Connect |
| Type | Fusible Modular Design Rear Access |
| Type | Modular Design Rear Access Fused |
| Voltage Rating | 145/80 |
| Voltage Rating | 145/80 VDC |
| Width | 4.78 |
| Width | 4.78 in |
