Description

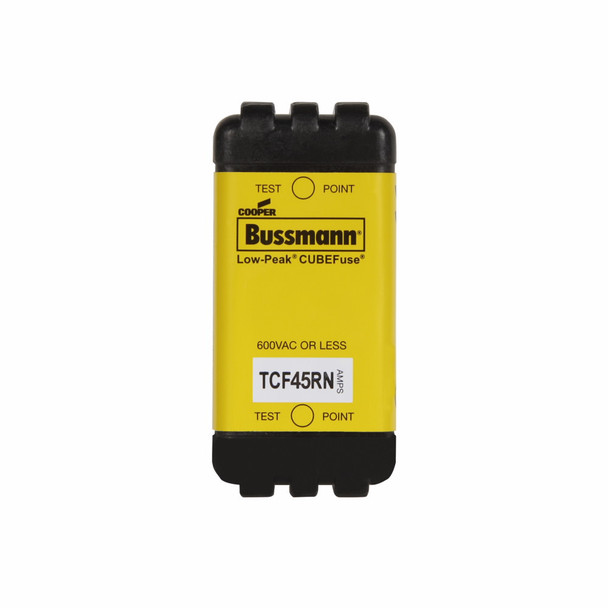

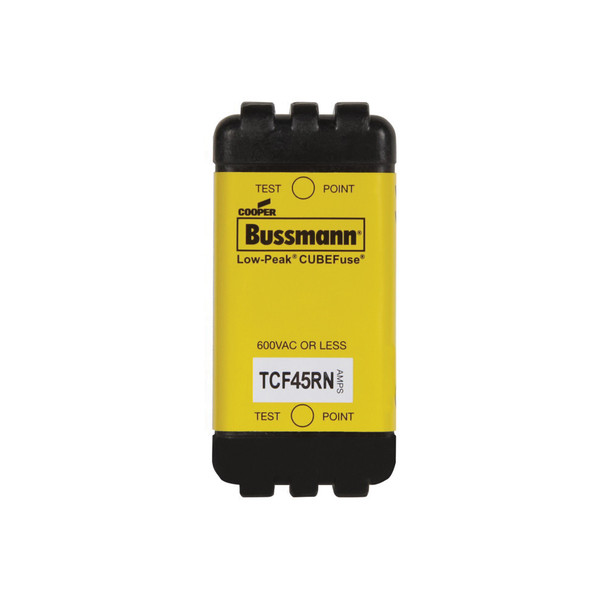

Bussmann TCF45RN Time Delay Fuse
Bussmann CUBEFuse Low-Peak Time Delay Fuse, Finger Safe Inrush Current Withstand Non-Indicating, Series: TCF, 45 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 2.13 in L x 1 in H Body Size
Additional Description: BUSS-TCF45RN CUBEFUSE, TCF 45A NON-IND
Catalog Description: Eaton Bussmann series TCF fuse, 45 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay,Class CF, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Glass filled PES, 35 mm DIN rail,Chassis, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 45 |
| Amperage Rating | 45 A |
| Body Type | Square |
| Body Type | Square Blade |
| Class | CF |
| Color | Black |
| Frequency Rating | 50/60 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/200/300 |
| Interrupt Rating | 100/300 kA |
| Interrupt Rating | 300 kA at 600 VAC, 100 kA at 300 VDC |
| Material | Glass Filled Polyethersulfone |
| Mounting type | Chassis/DIN Rail |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | TCF |
| Terminal Type | Blade |
| Terminal Type | Radial Blade Plug-In |
| Type | Cartridge Inrush Current Withstand |
| Type | Finger Safe Inrush Current Withstand |
| Type | Finger Safe Inrush Current Withstand Non-Indicating |
| Voltage Rating | 600 VAC, 300 VDC |
| Voltage Rating | 600 VAC/300 VDC |
