Description

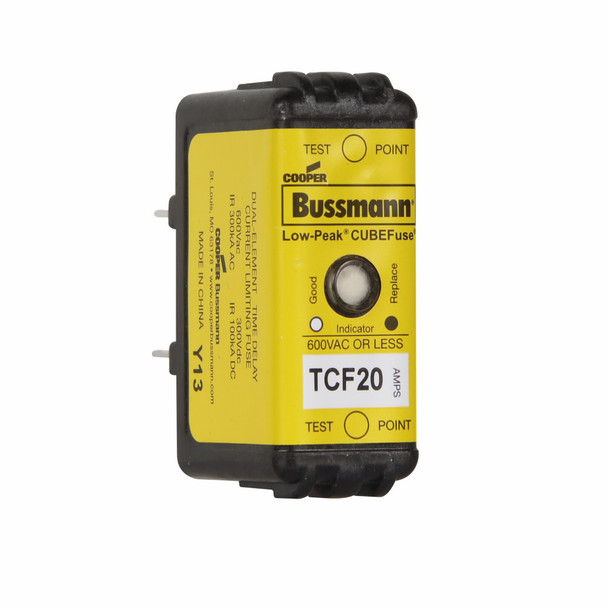

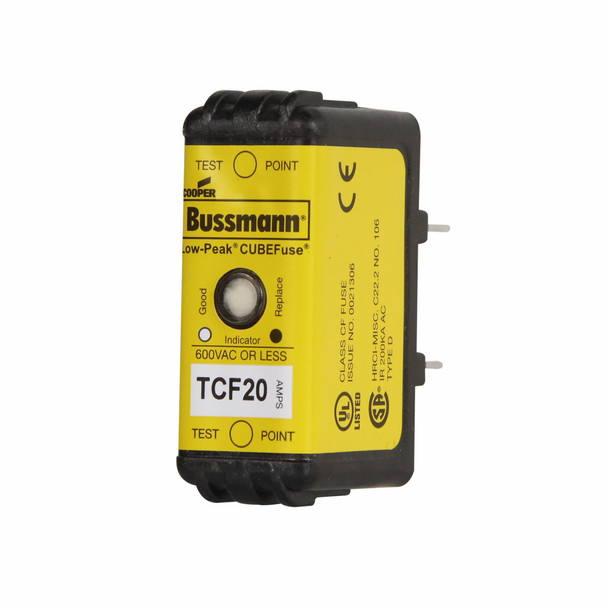

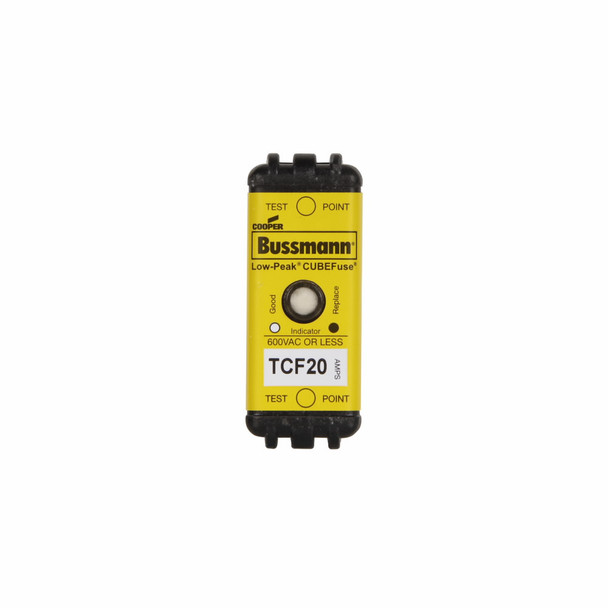

Bussmann TCF20 Low-Peak Fuse
Bussmann CUBEFuse Time Delay Fuse, Indicating Non-Rejection, Series: TCF, 20 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W x 1 in H Body Size
Additional Description: BUSS-TCF20 CUBEFUSE, TCF 20A IND
Catalog Description: Eaton Bussmann series TCF fuse, 20 A, 60 Hz, 50 Hz, Dual, CF, Black, With Indicator, Blade end, Time delay, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Body Type | Cartridge |
| Body Type | Square |
| Body Type | Square Blade |
| Class | CF |
| Class | Class CF |
| Color | Black |
| Frequency Rating | 50/60 Hz |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 100/300 |
| Interrupt Rating | 100/300 kA |
| Interrupt Rating | 300 kA at 600 VAC/100 kA at 300 VDC, 200 kA |
| Material | Glass Filled PES |
| Material | Glass Filled Polyethersulfone |
| Mounting type | Chassis/DIN Rail |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | TCF |
| Terminal Type | Blade |
| Terminal Type | Plug-In |
| Terminal Type | Radial Blade Plug-In |
| Type | Indicating Non-Rejection |
| Type | Inrush Current Withstand Time Delay |
| Voltage Rating | 600 VAC/300 VDC |
