Description

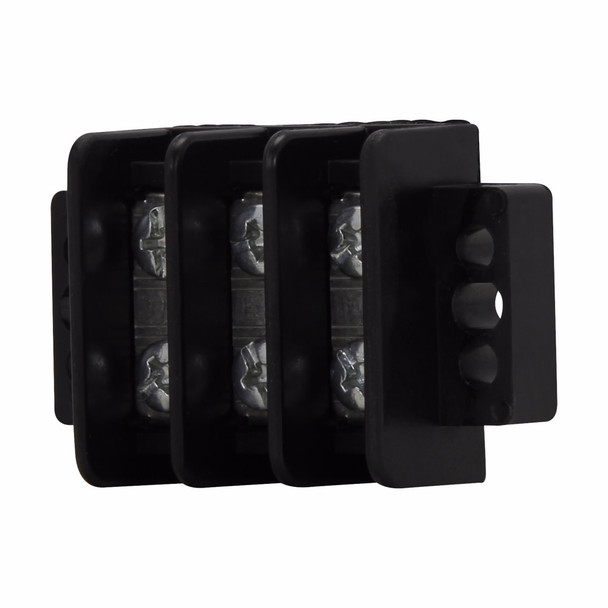

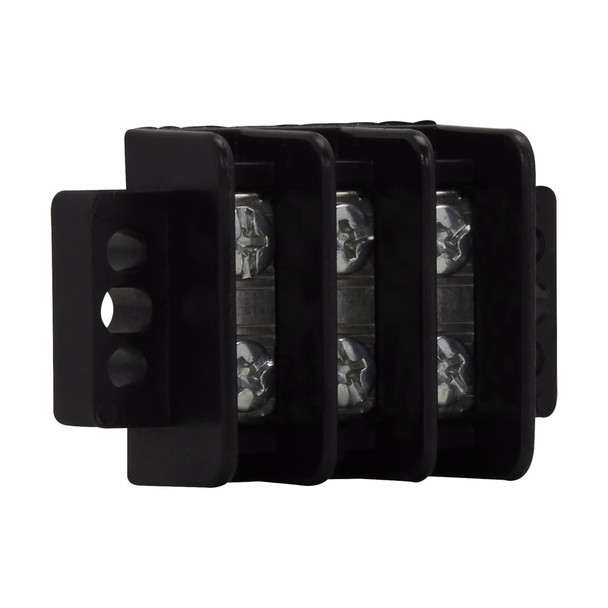

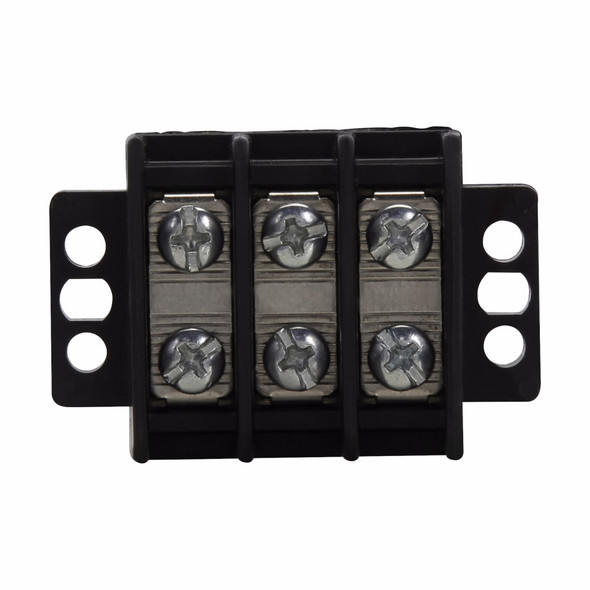

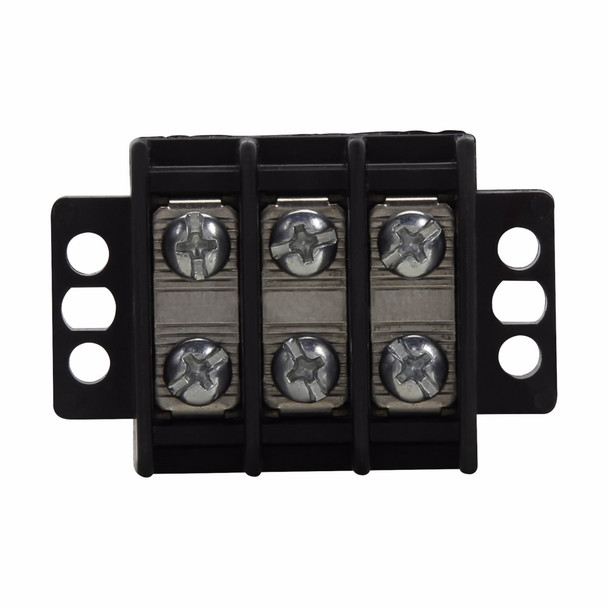

Bussmann TB200HB-20SS Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, High Barrier Double Row, 600 V, 30 A, 22 to 12 AWG Wire, 0.437 in Center Spacing, 9 in-lb, Panel Mount, #6-32 TPI Screw, -40 to 130 deg C, Brass/Steel/Thermoplastic, Black, 9.5 in L x 1.37 in W x 0.75 in H
Additional Description: UNDR-TB200HB-20SS (N) BARRIER BLOCK DOUBLE ROW TERMINAL BLOCK
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 600V, 30A, High barrier, 20-pole, Black, Molded thermoplastic base, tin-plated brass terminal, stainless steel SEMS philslot
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #6-32 TPI Screw |
| Connection type | 6 to 32 TPI Screw |
| Dimensions | 9.5 in L x 1.37 in W x 0.75 in H |
| Material | Brass/Steel/Thermoplastic |
| Material | Molded Thermoplastic |
| Mounting type | Panel |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | High Barrier |
| Type | High Barrier Double Row |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 22 to 12 |
| Wire Size | 22 to 12 AWG |
