Description

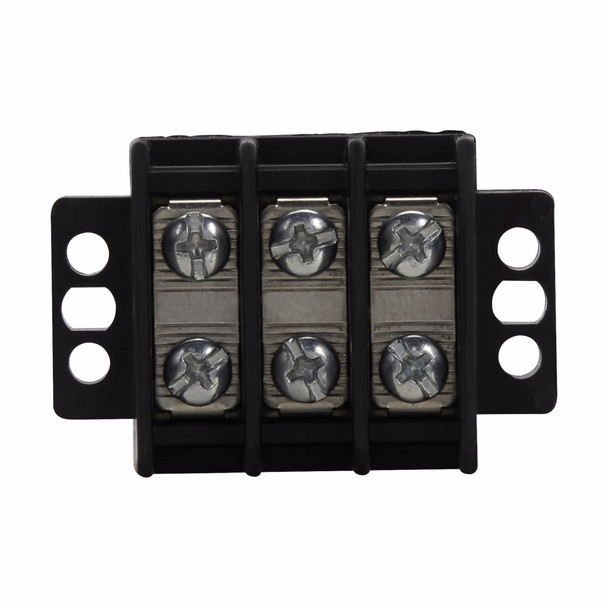

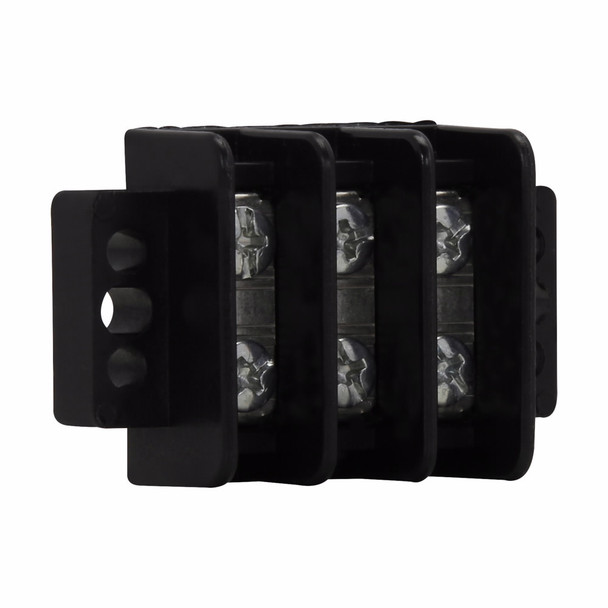

Bussmann TB200HB-15 Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Double Row, 600 V, 30 A, 9 in-lb, #6-32 TPI Screw, -40 to 130 deg C, Black, 2.51 in L x 1.37 in W x 0.75 in H
Additional Description: BUSS-TB200HB-15 BARRIER BLOCK
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 600V, 30A, Double row, high barrier, 15-pole, #6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #6-32 TPI Screw |
| Connection type | 6 to 32 TPI Screw |
| Dimensions | 2.51 in L x 1.37 in W x 0.75 in H |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | Double Row |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
