Description

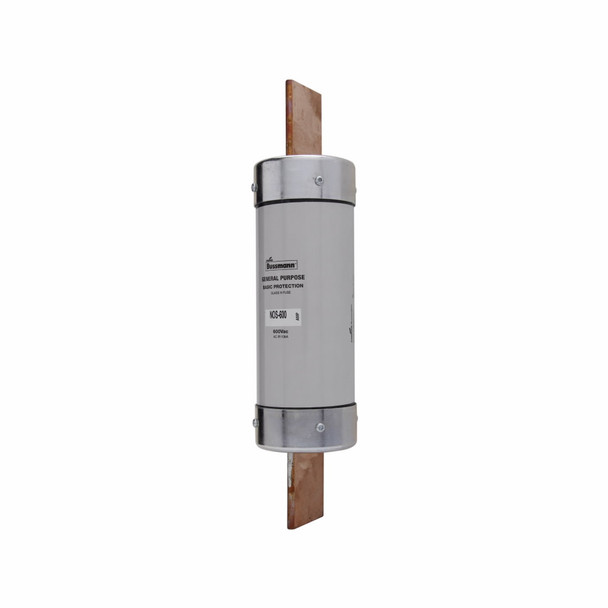

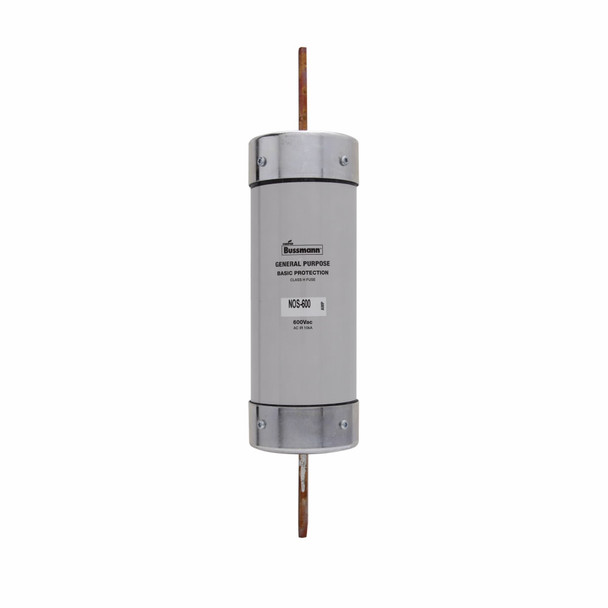

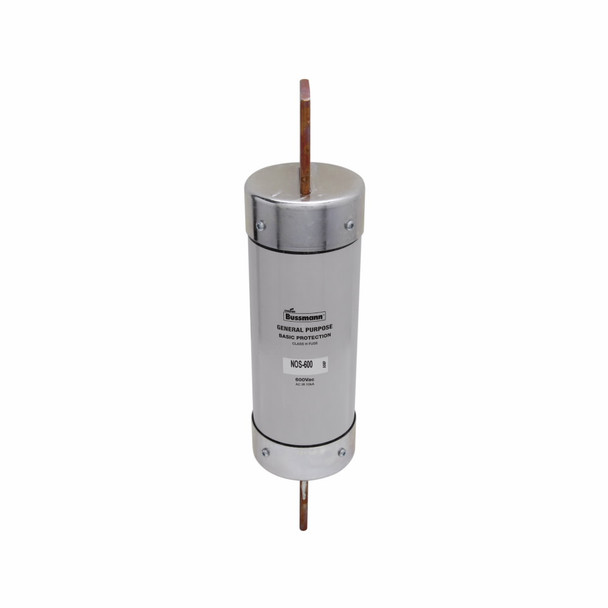

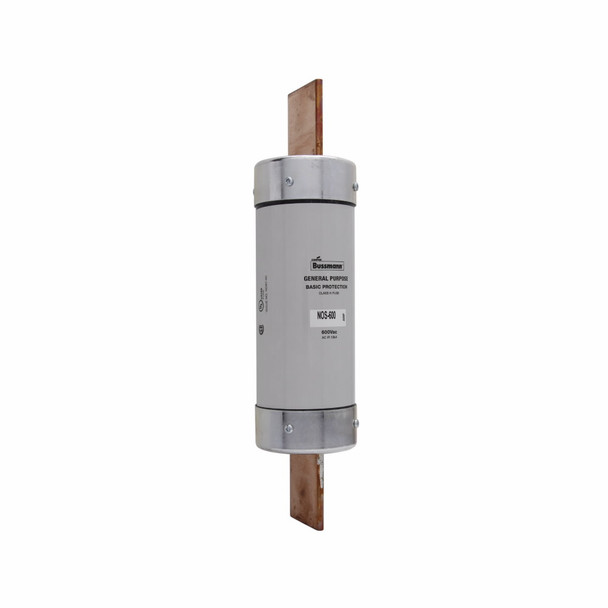

Bussmann NOS-450 General Purpose Fuse
Bussmann Fuse, One-Time Non-Current Limiting, Series: NOS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 450 A, 600 VAC, 10 kAIC Interrupt, Class: K5, Blade End Terminal, Holder Mount, Cartridge Body Type, 3.13 in Dia x 13.38 in L Body Size
Additional Description: BUSS-NOS-450 (N) BUSS ONE TIME FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series NOS fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 450 A, Class K5,Class H, Non-indicating, 10 kAIC at 600 Vac, Standard, 1, 600 V
Specifications
UNSPSC | 39121605 |
---|---|
Amperage Rating | 450 |
Amperage Rating | 450 A |
Body Type | Cartridge |
Body Type | Cartridge Blade |
Class | H/K5 |
Class | K5 |
Indicating/Non-Indicating | Non-Indicating |
Interrupt Rating | 10 |
Interrupt Rating | 10 kAIC |
Mounting type | Holder |
Rejection/Non-Rejection | Rejection |
Series | NOS |
Terminal Type | Blade |
Terminal Type | Blade End |
Type | Non-Current Limiting One Time |
Type | One-Time Non-Current Limiting |
Voltage Rating | 600 |
Voltage Rating | 600 VAC |
