Description

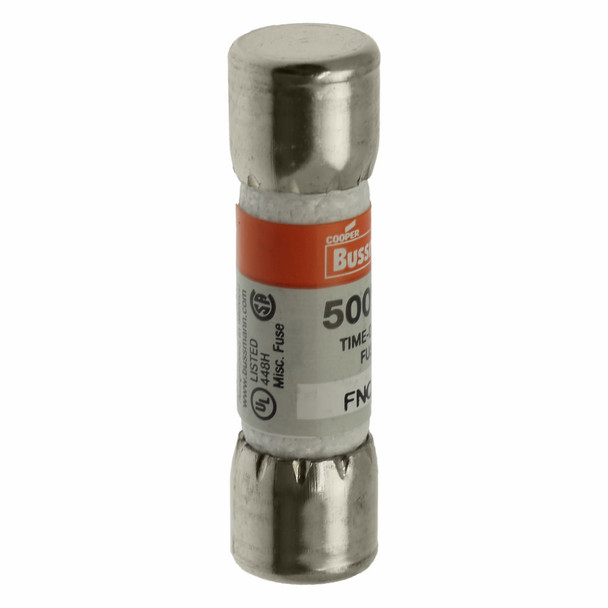

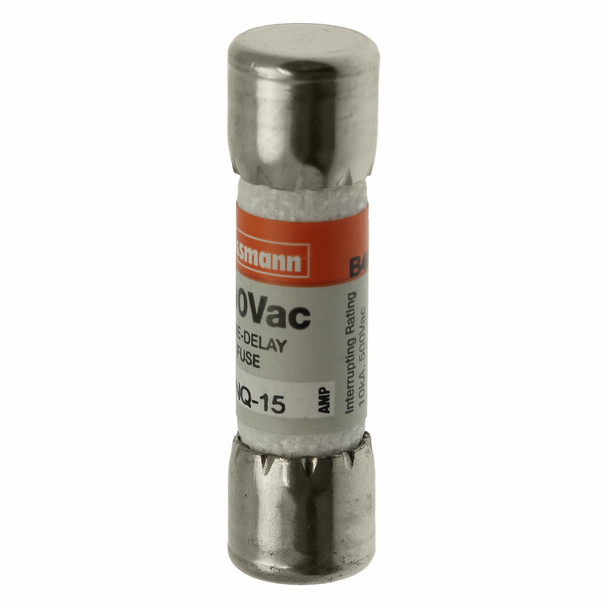

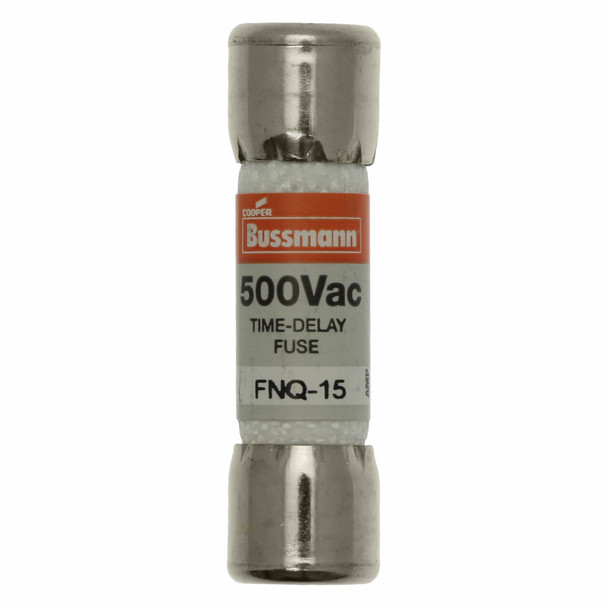

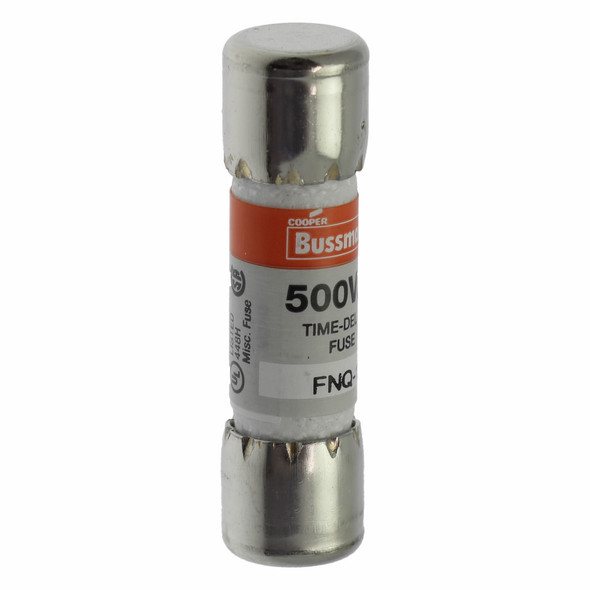

Bussmann FNQ-15 Midget Fuse
Bussmann Tron Midget Fuse, Time Delay, Series: FNQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 15 A, 500 VAC, 10000 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Bronze/Fiberglass, Orange, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-15 BUSS MIDGET FUSE
Catalog Description: Eaton Bussmann series FNQ fuse, Time-delay, Motor control transformers, Circuits with in-rush currents, 15 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 500 Vac, Nickel-plated bronze endcap, Standard, 500 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 15 |
| Amperage Rating | 15 A |
| Body Type | Cartridge |
| Class | CC/Supplemental |
| Class | Supplemental |
| Color | Orange |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10000 A |
| Material | Bronze/Fiberglass |
| Material | Fiber Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FNQ |
| Terminal Type | Ferrule |
| Type | Time Delay |
| Voltage Rating | 500 |
| Voltage Rating | 500 VAC |
