Description

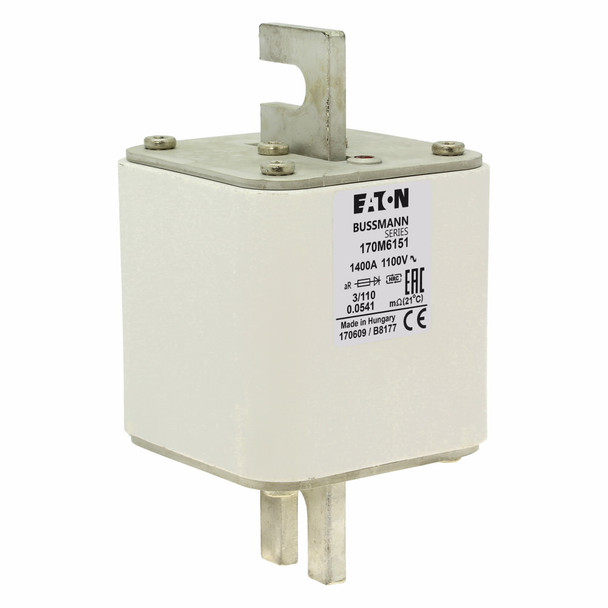

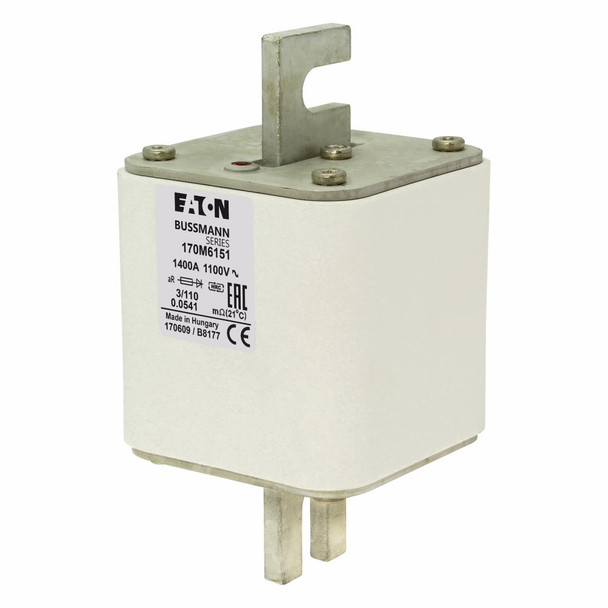

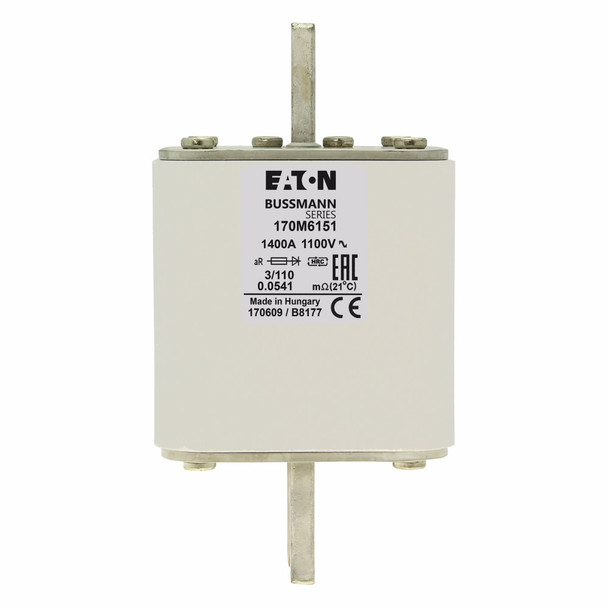

Bussmann 170M6151 High Speed Fuse
Bussmann High Speed Fuse, Type 110, Series: 170M, Indicating, 1400 A, 1100 V, 100 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 139 mm L x 76 mm W x 76 mm H Body
Additional Description: BUSS-170M6151 FUSE 1400A 1100V 3/110 AR
Catalog Description: Fuse-link, high speed, 1400 A, AC 1100 V, size 3, 76 x 90 x 139 mm, aR, DIN, IEC, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1.4 |
| Amperage Rating | 1400 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 kA |
| Material | Ceramic |
| Mounting type | DIN 43-653 Stud |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Type | Type 110 |
| Voltage Rating | 1100 V |
| Voltage Rating | 1100/1300 |
