Description

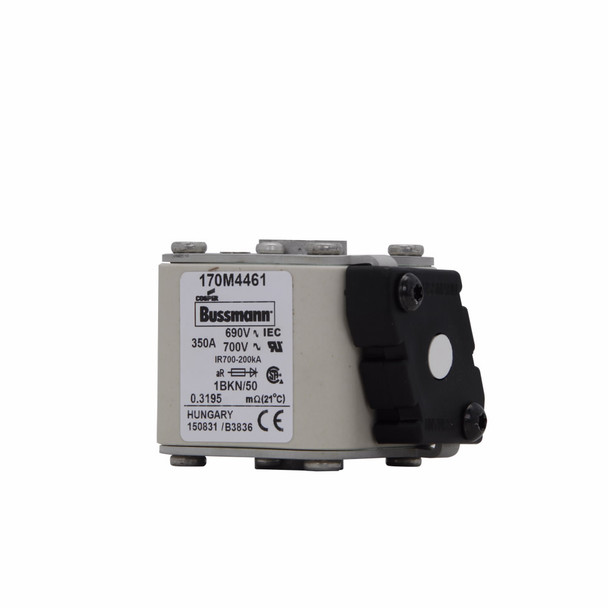

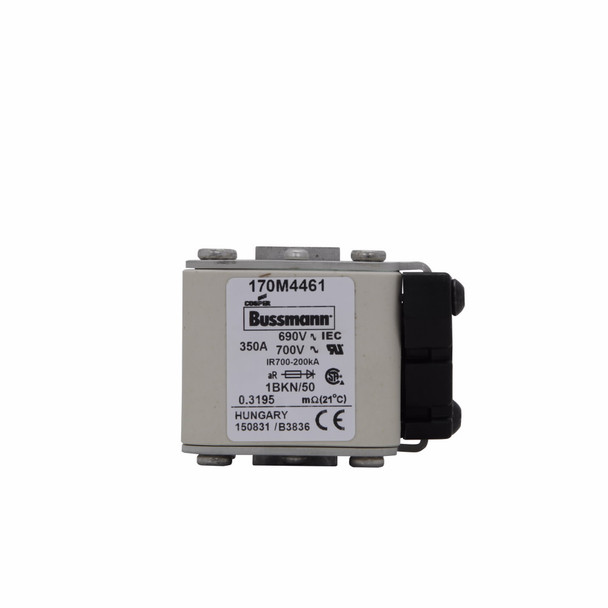

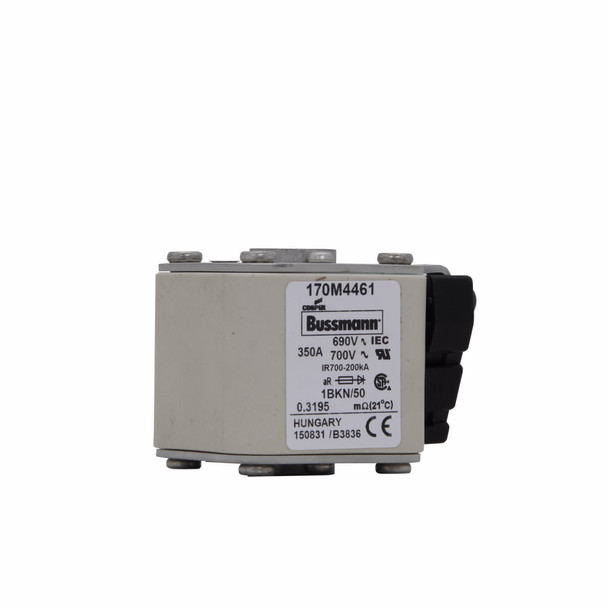

Bussmann 170M4461 High Speed Fuse
Bussmann High Speed Fuse, Type BKN/K, Series: 170M, Non-Indicating, 350 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade Terminal, Flush Mounting, Square Body, Ceramic, 51 mm L x 53 mm W x 69 mm H Body
Additional Description: BUSS-170M4461 FUSE 350A 690V 1BKN/50 AR UC
Catalog Description: Fuse-link, high speed, 350 A, AC 690 V, size 1, aR, IEC, UL, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 350 |
| Amperage Rating | 350 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Flush |
| Series | 170M |
| Terminal Type | Blade |
| Type | Type BKN/K |
| Voltage Rating | 690 |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
