Description

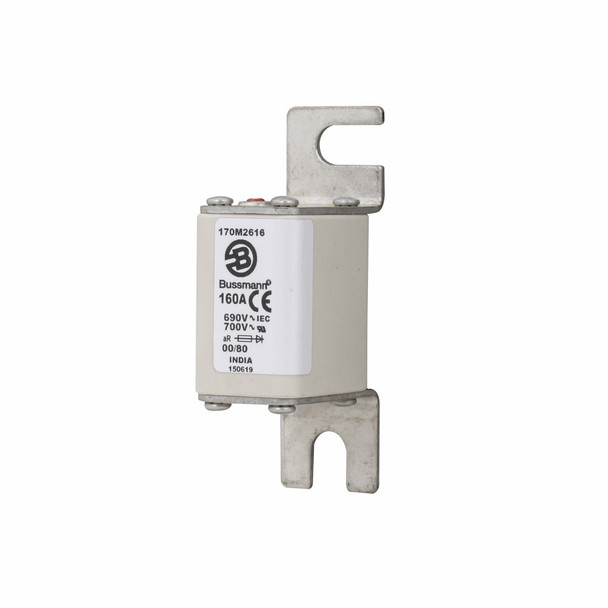

Bussmann 170M2616 High Speed Fuse
Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Indicating, 160 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M2616 (N) FUSE 160A 690V 00/80 AR UR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 160A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M2616
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 160 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43-653 Stud |
| Series | 170M |
| Terminal Type | Blade End |
| Type | Square Body Type 80 |
| Voltage Rating | 690 V |
