Description

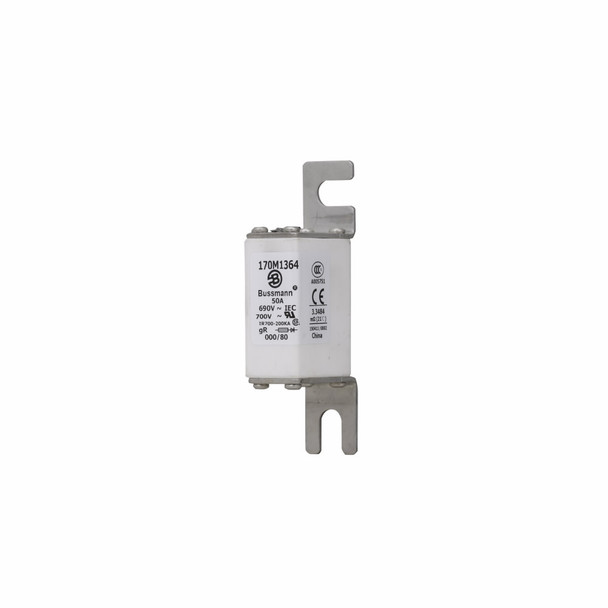

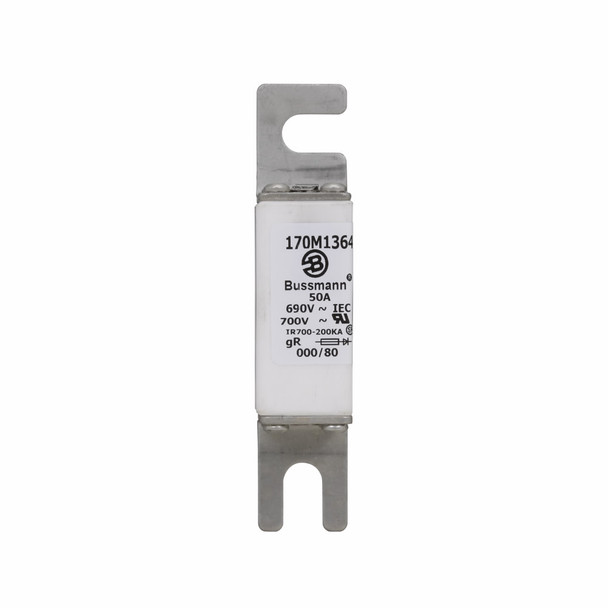

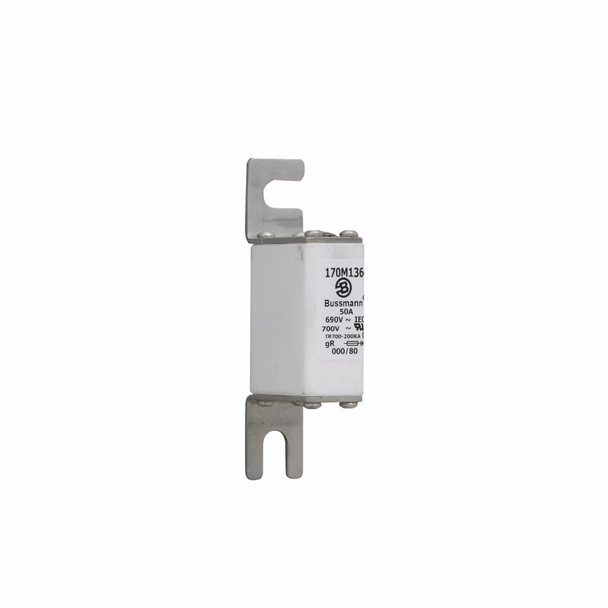

Bussmann 170M1364 High Speed Fuse
Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Non-Indicating, 50 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body
Additional Description: BUSS-170M1364 FUSE 50A 690V 000/80 GR UC
Catalog Description: Eaton Bussmann series high speed square body fuse, 50 A, 690 V (IEC), 700 V (UL), , Size 0, Top fuse status indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 50 |
| Amperage Rating | 50 A |
| Body Type | Square |
| Class | gR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43 620 |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Square Body Type 80 |
| Type | Type 80 |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
