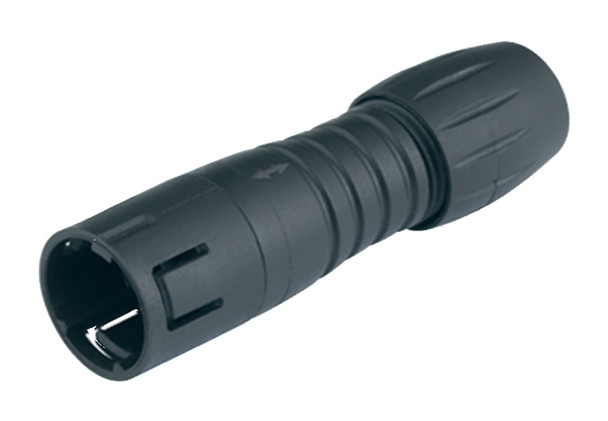

Binder 99-9205-00-03 Snap-In IP67 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67

No reviews yet Write a Review
$8.44
Binder 99-9205-00-03 Snap-In IP67 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67 | American Cable Assemblies
Binder 99-9205-00-03 Snap-In IP67 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67
Binder 99-9205-00-03 Snap-In IP67 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67
SKU:
BN99-9205-00-03
MPN:
99-9205-00-03
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
Snap-In, series 620, Subminiature Connectors
Numbers of contacts:
3
$8.44

Frequently Bought Together:

Binder 99-9205-00-03 Snap-In IP67 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67 | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

These snap-lock connectors meet the requirements of protection class IP67 when mated and are suitable for applications requiring protection against dust and liquids. They are available as cable connectors or with moulded cables, but can also be designed as flange connectors. The cable connectors as well as the flange connectors are available in black, red, blue or green. Users can choose between 3-, 4-, 5- or 8-pole versions, which are designed for a rated current between 1A and 3A at 63 - 125V. Most models are available with solder or dip solder termination. More than 500 mating cycles are possible.
General Features
Part no. 99 9205 00 03
Connector design Male cable connector
Version Connector pin straight
Connector locking system snap-in
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.25 mm² / AWG 24
Cable outlet 3.5-5.0 mm
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 3.24
Customs tariff number 85369010

Electrical Parameters
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current (40 °C) 3,0 A
Insulation resistance ? 10¹? ?
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Material
Housing material PA
Contact body material PA (UL94 HB) black
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number c56fb2a6-b76c-4b8a-aa1b-6a00e9b898bf
