Description
| Part no. | 99 4174 90 08 |
|---|---|

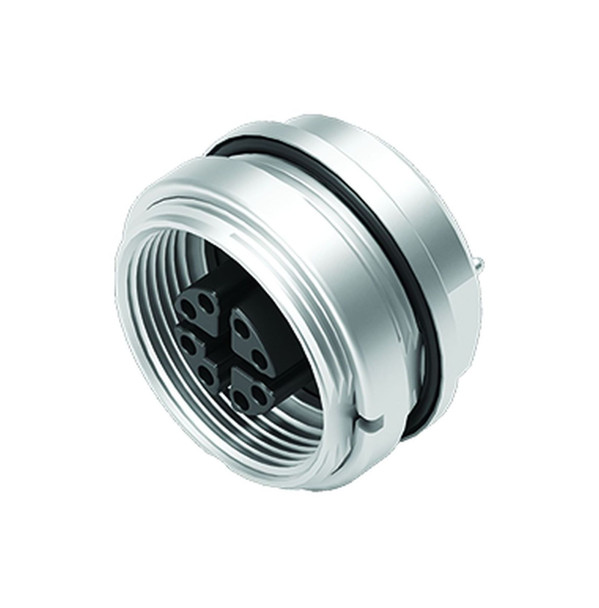

| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | THR |
| Degree of protection | IP67 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 15.0 |
| Customs tariff number | 85369010 |
| Rated voltage | 50 V (AC) / 60 V (DC) |
|---|---|
| Rated impulse voltage | 800 V |
| Rated current (40 °C) | 0.5 A |
| Insulation resistance | > 10? ? |
| Pollution degree | 3 |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | Shield pin |
| REACH SVHC | CAS 7439-92-1 (Lead) |
|---|
