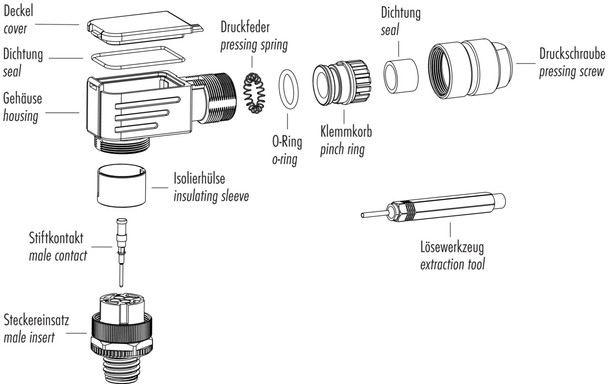

Binder 99-3721-820-04 M12-D Male angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping (Crimp contacts must be ordered separately), IP67, UL

No reviews yet Write a Review
$33.48
Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies
Binder 99-3721-820-04 M12-D Male angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping (Crimp contacts must be ordered separately), IP67, UL
Binder 99-3721-820-04 M12-D Male angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping (Crimp contacts must be ordered separately), IP67, UL
SKU:
BN99-3721-820-04
MPN:
99-3721-820-04
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
$33.48

Frequently Bought Together:

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

General Features
Part no. 99 3721 820 04
Connector design Male angled connector
Version Connector pin angled
Connector locking system screw
Termination crimping (Crimp contacts must be ordered separately)
Degree of protection IP67
Cross-sectional area click here for more info
Cable outlet 5.0-8.0 mm
Twistability 90° (4 coding options)
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 60.61
Customs tariff number 85369010

Electrical Parameters
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current (40 °C) 4.0 A
Insulation resistance ? 10¹? ?
Pollution degree 3
Transmission rate CAT 5
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection Iris type spring
Material
Housing material Zinc die-cast nickel-plated
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number bf4c57b6-2548-4cf7-821a-77ce888bcdfb
Declarations of conformity
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
