In Stock
Binder

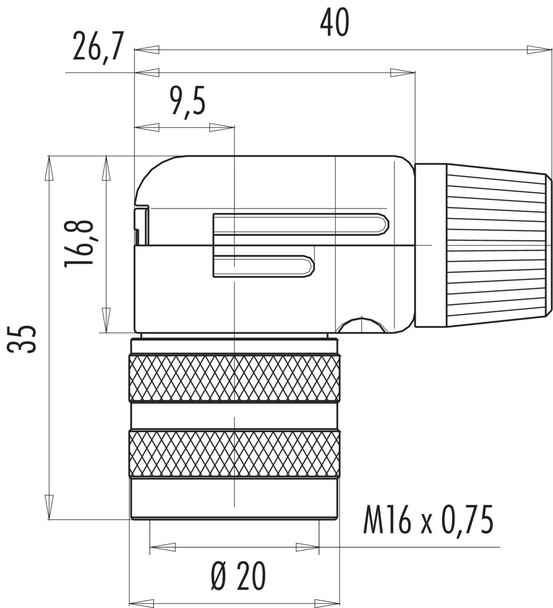

Binder 99-0140-10-05 M16 IP40 Female angled connector, Contacts: 5 (05-a), 4.0-6.0 mm, shieldable, solder, IP40

No reviews yet Write a Review
$20.48
Binder 99-0140-10-05 M16 IP40 Female angled connector, Contacts: 5 (05-a), 4.0-6.0 mm, shieldable, solder, IP40 | American Cable Assemblies
Binder 99-0140-10-05 M16 IP40 Female angled connector, Contacts: 5 (05-a), 4.0-6.0 mm, shieldable, solder, IP40
Binder 99-0140-10-05 M16 IP40 Female angled connector, Contacts: 5 (05-a), 4.0-6.0 mm, shieldable, solder, IP40
SKU:
BN99-0140-10-05
MPN:
99-0140-10-05
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M16, series 682, Miniature Connectors
Numbers of contacts:
5 (05-a)
$20.48

Frequently Bought Together:

Binder 99-0140-10-05 M16 IP40 Female angled connector, Contacts: 5 (05-a), 4.0-6.0 mm, shieldable, solder, IP40 | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

General Features
Part no. 99 0140 10 05
Connector design Female angled connector
Version Connector socket angled
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 4.0-6.0 mm
Twistability 90° (4 coding options)
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 41.76
Customs tariff number 85369010

Electrical Parameters
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current (40 °C) 6.0 A
Insulation resistance ? 10¹? ?
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection cable clamp
Material
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number bfde15a0-6cd2-47b0-9084-91099880c8f6
