Description
| Part no. | 99 0139 10 05 |
|---|---|

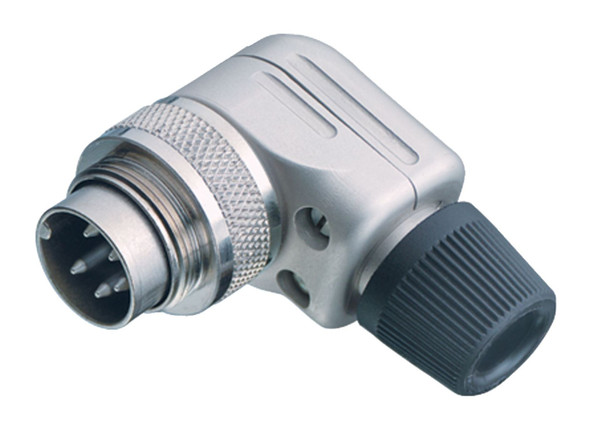

| Connector design | Male angled connector |
| Version | Connector pin angled |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP40 |
| Cross-sectional area | max. 0.75 mm² / AWG 18 |
| Cable outlet | 4.0-6.0 mm |
| Twistability | 90° (4 coding options) |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 1000 Mating cycles |
| Weight (g) | 34.90 |
| Customs tariff number | 85369010 |
| Rated voltage | 250 V |
|---|---|
| Rated impulse voltage | 1500 V |
| Rated current (40 °C) | 6.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 1 |
| Overvoltage category | I |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | cable clamp |
| Housing material | Zinc die-cast nickel-plated |
|---|---|
| Contact body material | PBT (UL94 V-0) |
| Contact material | CuZn (brass) |
| Contact plating | Ag (silver) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | 8b852119-8b5e-42fc-8b7f-f732237866fd |
