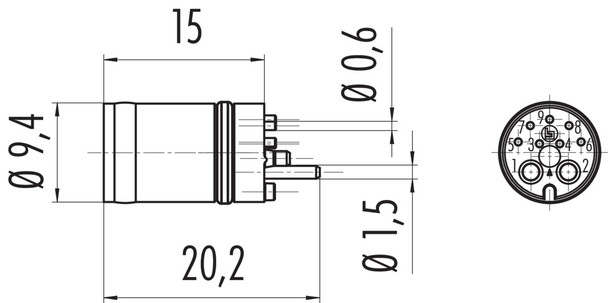

These connector systems are the perfect solution where power and signal are required. One Cable Solution (OCS) in the proven M12 package, IP67/68/69. 9 poles - 2 power + 7 signal contacts allow high flexibility. Materials are suitable for temporary outdoor use. M12-A screw locking with plastic threaded ring and for tougher requirements with stainless steel threaded ring. Another feature is the easy assembly.
General Features| Part no. | 86 7047 0000 00009 |
|---|
| Connector design | Male receptacle |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | Contact 1+2 THR / Contact 3-9 SMT |
|---|
| Degree of protection | IP67 plugged and locked |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 1.75 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | Power: 63 V, Signal: 0.5 A |
|---|
| Rated impulse voltage | Power: 800 V, Signal: 500 V |
|---|
| Rated current (40 °C) | 0.5 A Signal / 12 A Power |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PA |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | e000918b-be91-4246-a1a2-e0dcdf3e5cb4 |
|---|
