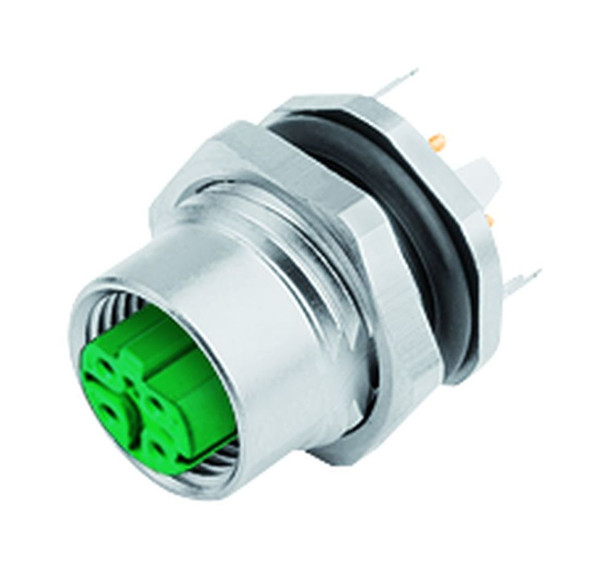

Binder 86-0536-1120-00404 M12-D Female panel mount connector, Contacts: 4, shieldable, THT, IP67, PG 9, front fastened

No reviews yet Write a Review
$16.96
Binder 86-0536-1120-00404 M12-D Female panel mount connector, Contacts: 4, shieldable, THT, IP67, PG 9, front fastened | American Cable Assemblies
Binder 86-0536-1120-00404 M12-D Female panel mount connector, Contacts: 4, shieldable, THT, IP67, PG 9, front fastened
Binder 86-0536-1120-00404 M12-D Female panel mount connector, Contacts: 4, shieldable, THT, IP67, PG 9, front fastened
SKU:
BN86-0536-1120-00404
MPN:
86-0536-1120-00404
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
$16.96

Frequently Bought Together:

Binder 86-0536-1120-00404 M12-D Female panel mount connector, Contacts: 4, shieldable, THT, IP67, PG 9, front fastened | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

M12 connectors with D-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cutting terminal connection and reach Cat5. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors have excellent shielding and achieve IP67 protection. Shielded M12-D to RJ45 adapters are available straight and angled.
General Features
Part no. 86 0536 1120 00404
Alternative part no.: 09 3732 500 04
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 14.23
Customs tariff number 85369010

Electrical Parameters
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current (40 °C) 4.0 A
Insulation resistance > 10¹? ?
Pollution degree 3
Transmission rate CAT 5
Overvoltage category II
Insulating material group II
EMC compliance shieldable
Shield connection Shielding plate
Material
Housing material CuZn (Brass nickel plated)
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number bc522939-c3b5-4f83-bbd7-62b01b35120e
