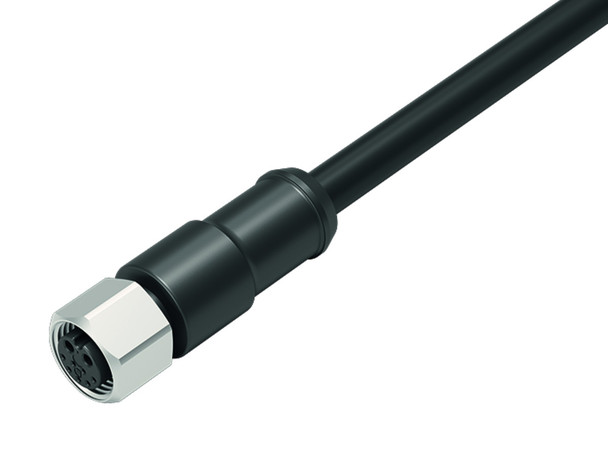

Binder 77-8730-0000-30709-0185 M12-Hybrid Female cable connector, Contacts: 2+7, moulded on the cable, IP69, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m

No reviews yet Write a Review
$130.56
Binder 77-8730-0000-30709-0185 M12-Hybrid Female cable connector, Contacts: 2+7, moulded on the cable, IP69, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m | American Cable Assemblies
Binder 77-8730-0000-30709-0185 M12-Hybrid Female cable connector, Contacts: 2+7, moulded on the cable, IP69, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m
SKU:
BN77-8730-0000-30709-0185
MPN:
77-8730-0000-30709-0185
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
$130.56

Frequently Bought Together:

Binder 77-8730-0000-30709-0185 M12-Hybrid Female cable connector, Contacts: 2+7, moulded on the cable, IP69, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

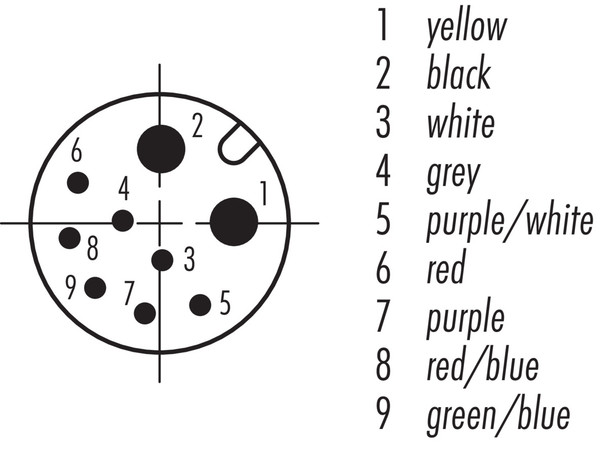

These connector systems are the perfect solution where power and signal are required. One Cable Solution (OCS) in the proven M12 package, IP67/68/69. 9 poles - 2 power + 7 signal contacts allow high flexibility. Materials are suitable for temporary outdoor use. M12-A screw locking with plastic threaded ring and for tougher requirements with stainless steel threaded ring. Another feature is the easy assembly.
General Features
Part no. 77 8730 0000 30709-0185
Connector design Female cable connector
Cable length 1.85 m
Version Connector socket straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP69
Cross-sectional area Power: 0.75–1.5 mm², Signal: 0.14–0.25 mm² / Power: AWG 20-18, Signal: AWG 26-24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 131
Customs tariff number 85444290

Electrical Parameters
Rated voltage Power: 63 V, Signal: 0.5 A
Rated impulse voltage Power: 800 V, Signal: 500 V
Rated current (40 °C) 0.5 A Signal / 12 A Power
Pollution degree 2
Overvoltage category II
Insulating material group I
Material
Housing material PUR
Contact body material TPU
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material Stainless steel
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 667d0eb9-2eb5-4a44-94b0-ec902c875192
