Connectors of the 813 series with screw locking according to DIN EN 61076-2-111 are T-coded for DC applications. T-coded versions have 4 contacts with a rated current of 12 A at 63 VDC. The straight and angled cable connectors have screw terminals, but are also available with moulded cable. Flange connectors have dip solder terminals, but also stranded wires.
General Features
| Part no. |
76-0240-0115-00044-0200 |
|---|
| Connector design |

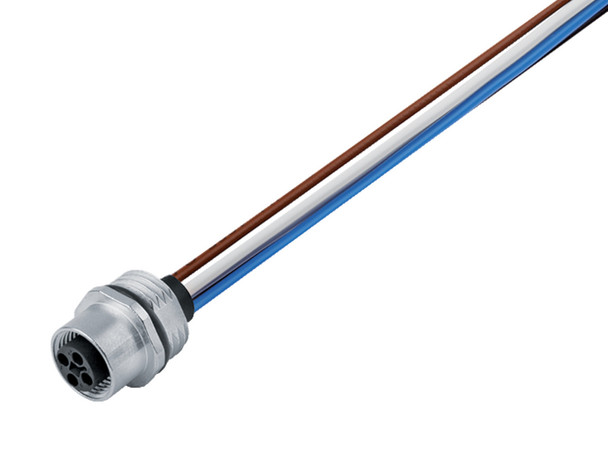

Female panel mount connector |
|---|
| Version |
Connector socket straight |
|---|
| Connector locking system |
screw |
|---|
| Termination |
single wires |
|---|
| Degree of protection |
IP68 |
|---|
| Cross-sectional area |
1.38 mm² / AWG 16 |
|---|
| Temperature range from/to |
-40 °C / 85 °C |
|---|
| Mechanical operation |
> 100 Mating cycles |
|---|
| Weight (g) |
25.50 |
|---|
| Customs tariff number |
85369010 |
|---|
Electrical Parameters
| Rated voltage |
63 V |
|---|
| Rated impulse voltage |
1500 V |
|---|
| Rated current (40 °C) |
12.0 A |
|---|
| Pollution degree |
3 |
|---|
| Overvoltage category |
III |
|---|
| Insulating material group |
II |
|---|
| EMC compliance |
unshielded |
|---|
Material
| Housing material |
Zinc die-cast nickel-plated |
|---|
| Contact body material |
PA |
|---|
| Contact material |
CuSn (bronze) |
|---|
| Contact plating |
Au (gold) |
|---|
| REACH SVHC |
CAS 7439-92-1 (Lead) |
|---|
| SCIP number |
d79fce4f-d27d-4dd3-8074-cb1ece2e7270 |
|---|
