Binder 09-4912-080-04 Push-Pull Female panel mount connector, Contacts: 4, unshielded, solder, IP67, front fastened

No reviews yet Write a Review
$24.72
Binder 09-4912-080-04 Push-Pull Female panel mount connector, Contacts: 4, unshielded, solder, IP67, front fastened | American Cable Assemblies
Binder 09-4912-080-04 Push-Pull Female panel mount connector, Contacts: 4, unshielded, solder, IP67, front fastened
Binder 09-4912-080-04 Push-Pull Female panel mount connector, Contacts: 4, unshielded, solder, IP67, front fastened
SKU:
BN09-4912-080-04
MPN:
09-4912-080-04
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
Push Pull, series 430, Subminiature Connectors
Numbers of contacts:
4
$24.72

Frequently Bought Together:

Binder 09-4912-080-04 Push-Pull Female panel mount connector, Contacts: 4, unshielded, solder, IP67, front fastened | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

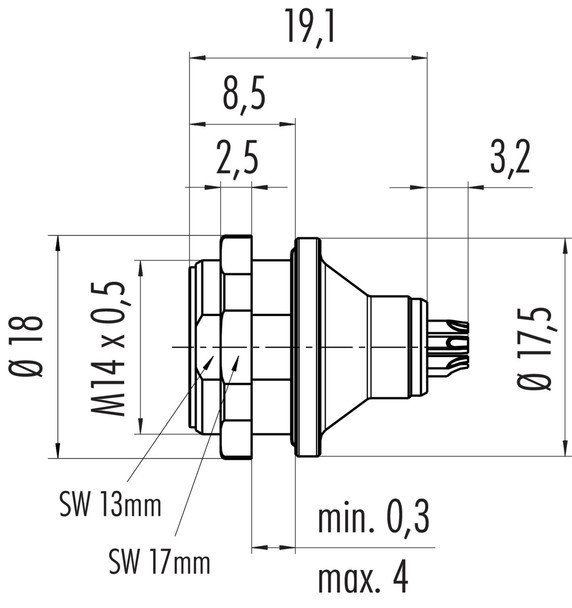

With a push-pull locking system and protection of up to IP67, the 430 series comes in both cable connector and panel mount versions – both of which are shieldable if required. Available with 3 to 8 contacts rated between 1A and 4A, termination is solder with wire sizes from 0.14mm² to 0.25mm². The diameter of the cable connector is 14.5mm while the panel mount version measures 17.5mm.
General Features
Part no. 09 4912 080 04
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system Push-Pull
Termination solder
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 10.15
Customs tariff number 85369010

Electrical Parameters
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current (40 °C) 3,0 A
Pollution degree 2
Overvoltage category I
Insulating material group II
EMC compliance unshielded
Material
Contact body material PUR/PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 3f0bc7d6-183e-4ecd-a714-05a8cce16ccd
