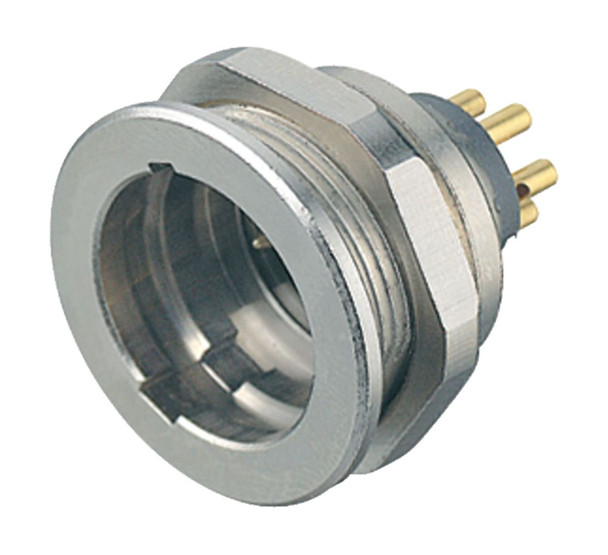

Binder 09-4807-15-03 Push-Pull Male panel mount connector, Contacts: 3, unshielded, solder, IP67

No reviews yet Write a Review
$22.04
Binder 09-4807-15-03 Push-Pull Male panel mount connector, Contacts: 3, unshielded, solder, IP67 | American Cable Assemblies
Binder 09-4807-15-03 Push-Pull Male panel mount connector, Contacts: 3, unshielded, solder, IP67
Binder 09-4807-15-03 Push-Pull Male panel mount connector, Contacts: 3, unshielded, solder, IP67
SKU:
BN09-4807-15-03
MPN:
09-4807-15-03
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
Push Pull, series 440, Miniature Connectors
Numbers of contacts:
3
$22.04

Frequently Bought Together:

Binder 09-4807-15-03 Push-Pull Male panel mount connector, Contacts: 3, unshielded, solder, IP67 | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

440 Series push-pull circular connectors are designed for demanding applications that require a fast IP67 connection with the option of EMC shielding. They are available with 3 to 19 contacts in straight cable and flange versions with solder termination. The cable passage is 4 to 8 mm. Depending on the number of contacts, 440 series connectors are designed for a rated current of 3 A to 7 A.
General Features
Part no. 09 4807 15 03
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system Push-Pull
Termination solder
Degree of protection IP67
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 19.79
Customs tariff number 85369010

Electrical Parameters
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current (40 °C) 7.0 A
Insulation resistance ? 10¹? ?
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Material
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number e9ab49f1-b2c5-480c-a4f2-183d6d02ca6d
