Binder 09-0631-90-04 M12-T Male panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, VDE, M16x1,5, front fastened

No reviews yet Write a Review
$21.20
Binder 09-0631-90-04 M12-T Male panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, VDE, M16x1,5, front fastened | American Cable Assemblies
Binder 09-0631-90-04 M12-T Male panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, VDE, M16x1,5, front fastened
Binder 09-0631-90-04 M12-T Male panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, VDE, M16x1,5, front fastened
SKU:
BN09-0631-90-04
MPN:
09-0631-90-04
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
$21.20

Frequently Bought Together:

Binder 09-0631-90-04 M12-T Male panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, VDE, M16x1,5, front fastened | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Connectors of the 813 series with screw locking according to DIN EN 61076-2-111 are T-coded for DC applications. T-coded versions have 4 contacts with a rated current of 12 A at 63 VDC. The straight and angled cable connectors have screw terminals, but are also available with moulded cable. Flange connectors have dip solder terminals, but also stranded wires.
General Features
Part no. 09 0631 90 04
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP68
Cross-sectional area max. 1.50 mm² / AWG 16
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 15.00
Customs tariff number 85369010

Electrical Parameters
Rated voltage 63 V
Rated impulse voltage 1500 V

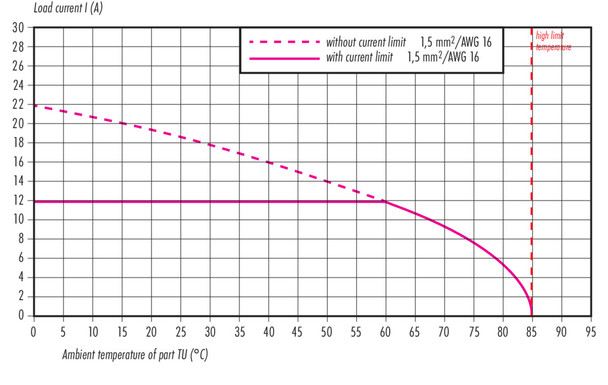

Rated current (40 °C) 12.0 A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance unshielded
Material
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number b97c823b-d50c-467a-9911-a24809178f54
