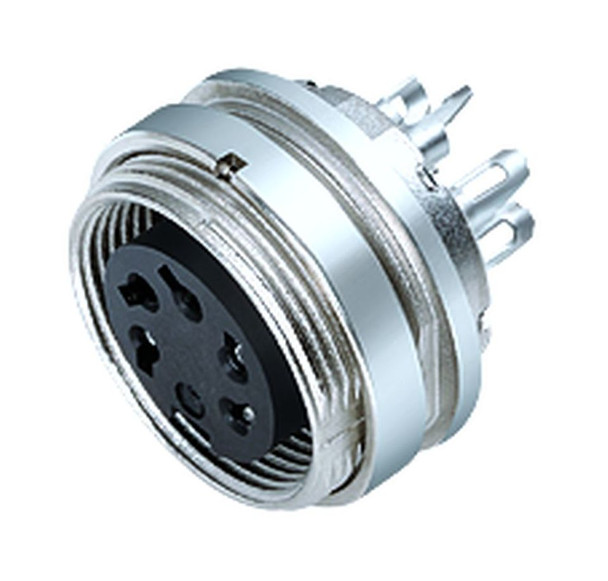

Binder 09-0474-89-08 M16 IP40 Female panel mount connector, Contacts: 8 (08-a), unshielded, solder, IP40, front fastened

No reviews yet Write a Review
$18.64
Binder 09-0474-89-08 M16 IP40 Female panel mount connector, Contacts: 8 (08-a), unshielded, solder, IP40, front fastened | American Cable Assemblies
Binder 09-0474-89-08 M16 IP40 Female panel mount connector, Contacts: 8 (08-a), unshielded, solder, IP40, front fastened
Binder 09-0474-89-08 M16 IP40 Female panel mount connector, Contacts: 8 (08-a), unshielded, solder, IP40, front fastened
SKU:
BN09-0474-89-08
MPN:
09-0474-89-08
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M16, series 680, Miniature Connectors
Numbers of contacts:
8 (08-a)
Contact plating:
Au (gold)
$18.64

Frequently Bought Together:

Binder 09-0474-89-08 M16 IP40 Female panel mount connector, Contacts: 8 (08-a), unshielded, solder, IP40, front fastened | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

General Features
Part no. 09 0474 89 08
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 8.91
Customs tariff number 85369010

Electrical Parameters
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current (40 °C) 5.0 A
Insulation resistance ? 10¹? ?
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Material
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number da4cdd48-92b3-4108-b299-2fa48d279392
